Synchronization of the VTEX XML catalog with Connectif

The VTEX XML catalog integration allows you to synchronize your VTEX store’s product catalog with Connectif, generating a personalized XML feed. This integration enables you to easily import your products into Connectif and synchronize them in bulk.

In this article, you’ll learn how to generate your XML feed for VTEX and how to synchronize it with Connectif.

Before you start: prerequisites

To integrate your VTEX XML catalog with Connectif, you’ll need:

• Access to the VTEX Admin.

• Administrative permissions to create and manage XML templates.

• A Collection in VTEX that includes all the products you want to export to the XML feed (see VTEX documentation to configure it).

STEP 1. XML configuration in VTEX

1.1. Creating the XML template in VTEX

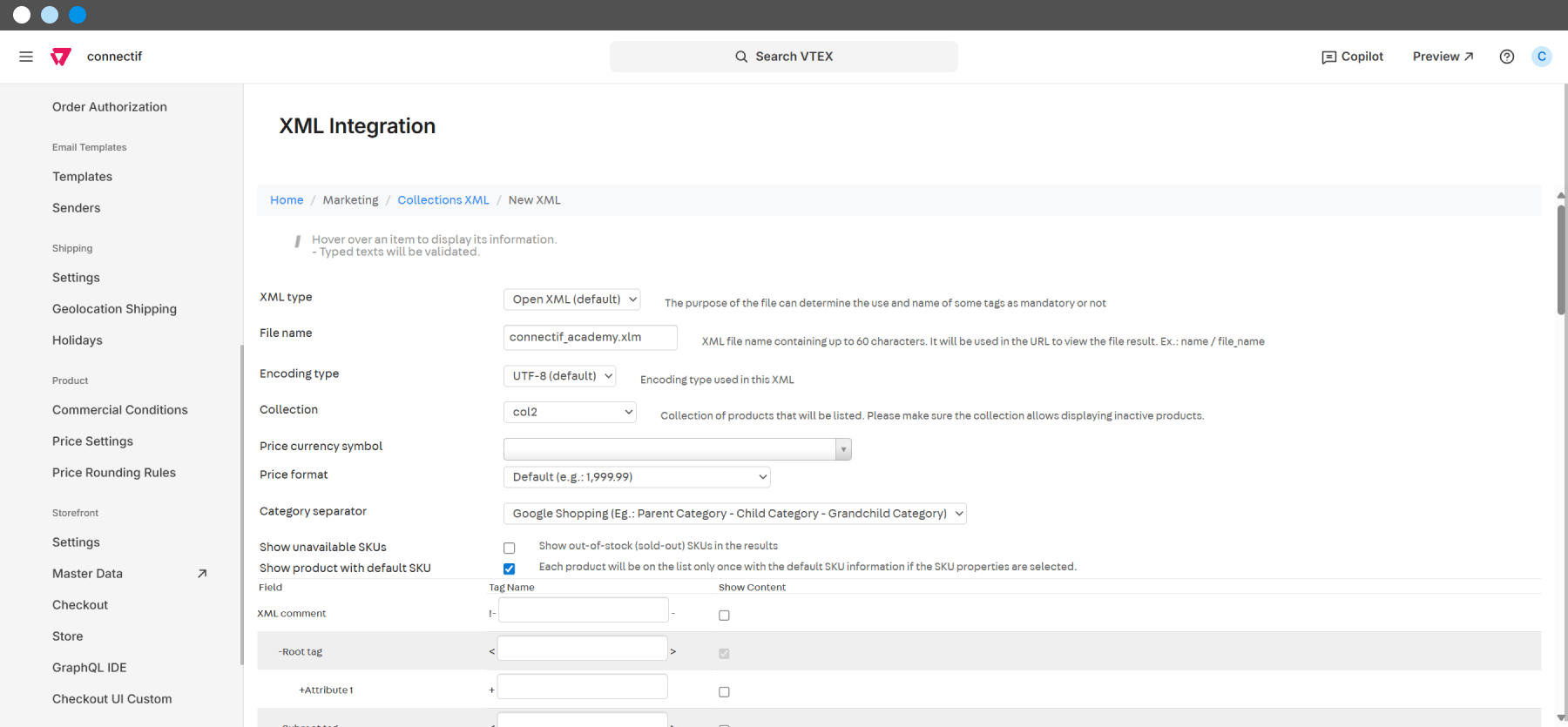

1. Go to the VTEX admin panel, navigate to "Store Settings > Channels" and click on XML Integration.

2. Click on New XML.

3. In XML Type, select the option Open XML (default).

4. Assign a File Name to identify it.

5. Complete the fields:

• In Encoding Type, select the option UTF-8 (default).

• In Collection, select the product collection to be listed.

• In Price format, select the option Default.

• In Category separator, select the option Google Shopping.

6. Check the box Show product with standard SKU.

1.2. Defining the product fields in VTEX

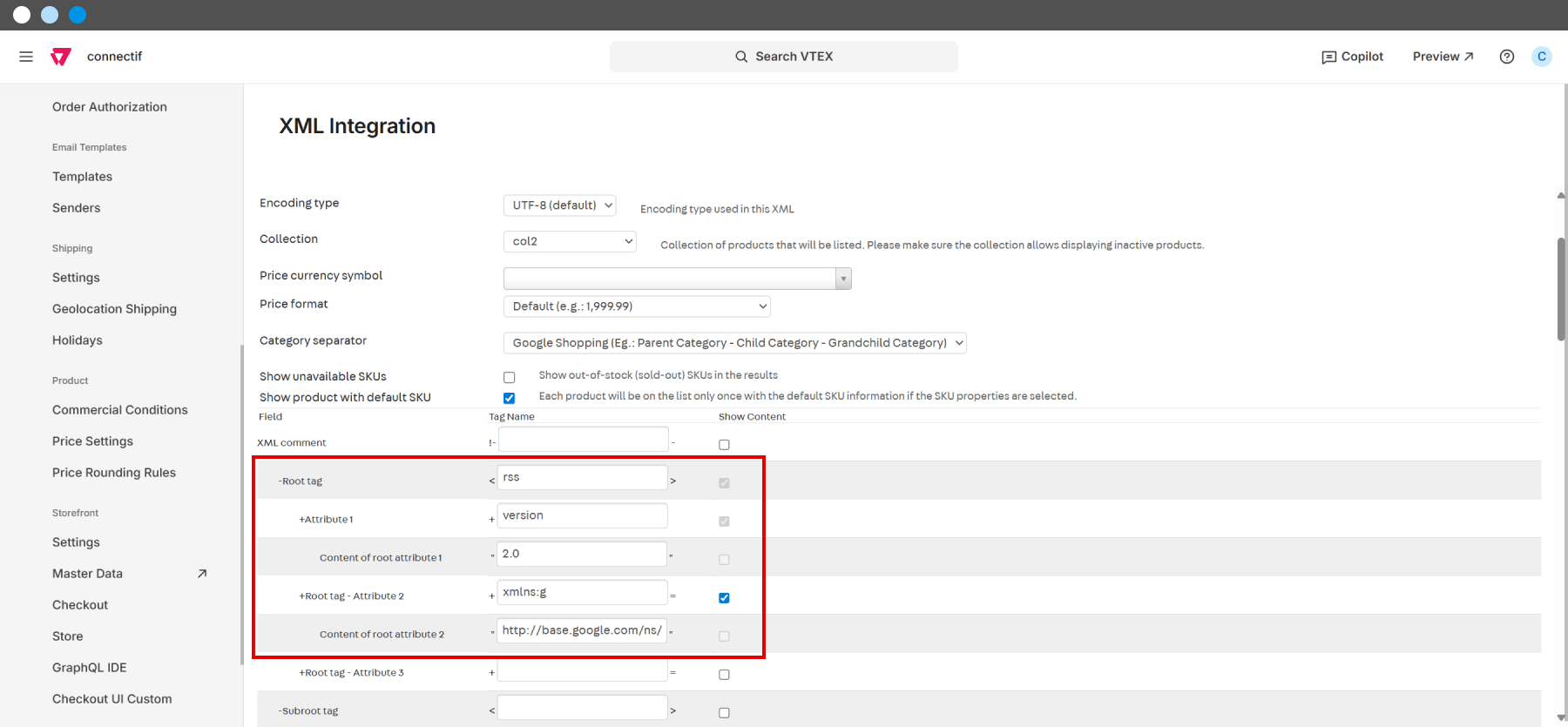

7. In the Root Tag area, complete the information as shown in the image below or as indicated in the official VTEX documentation.

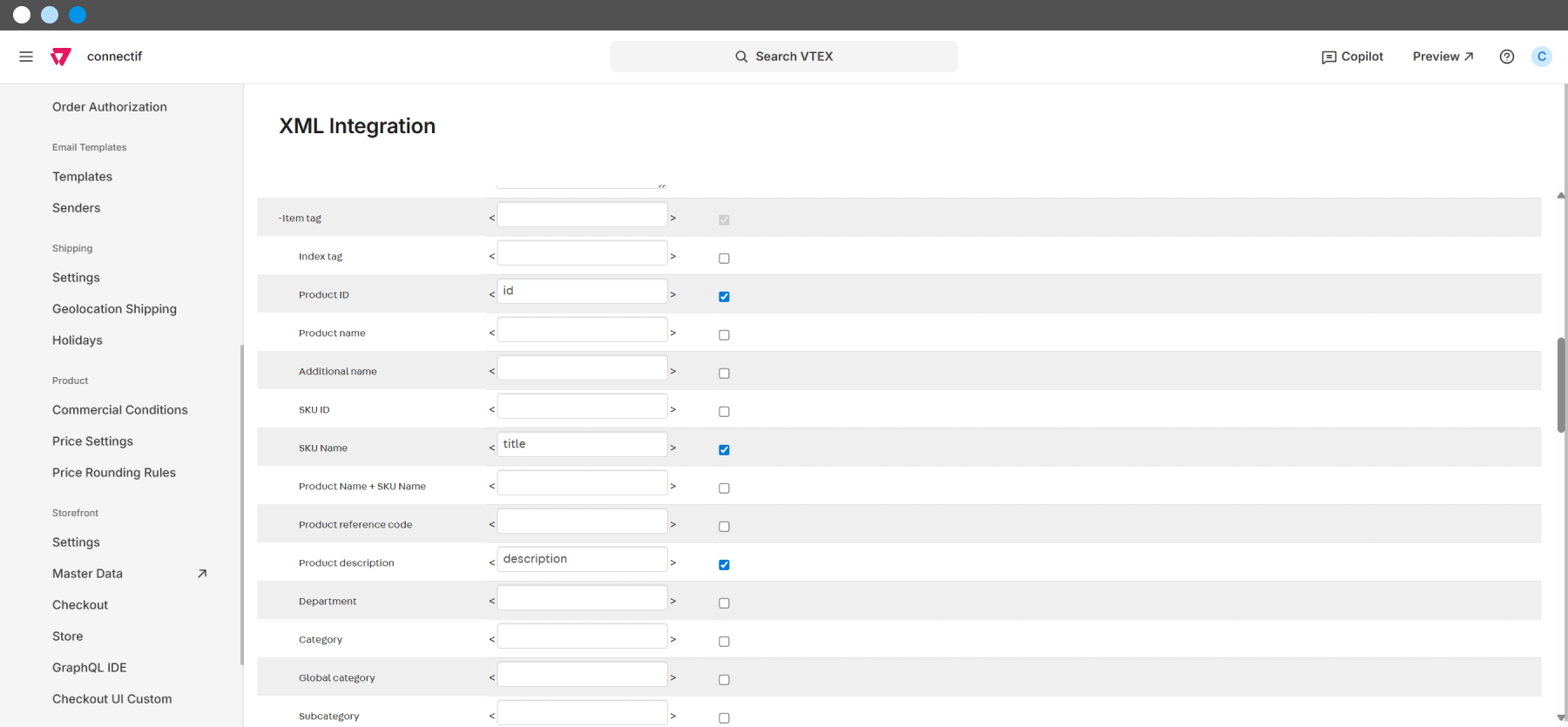

8. Configure the XML template to include the product information, as indicated in the following table:

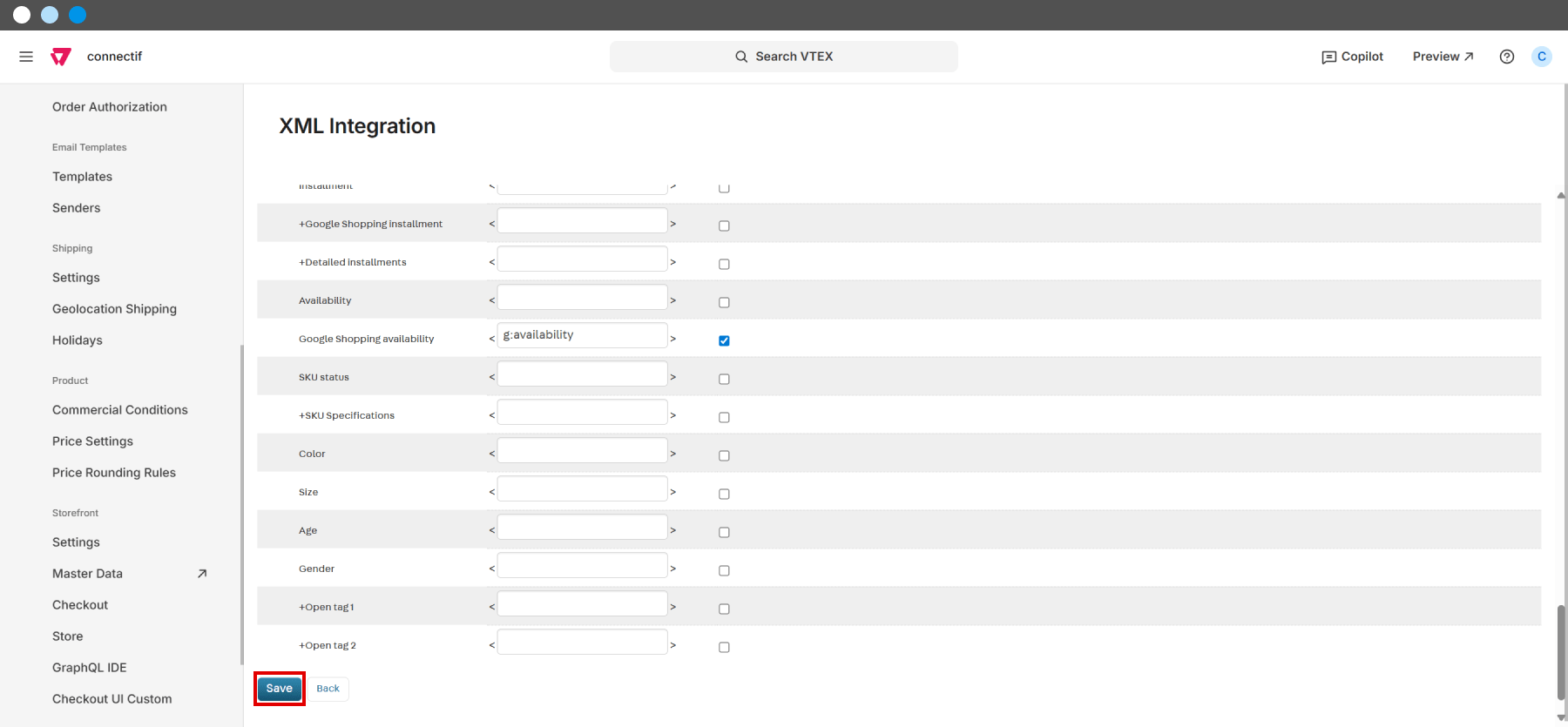

9. Click Save.

10. With everything ready, the XML would look like this:

<rss xmlns:g="http://base.google.com/ns/1.0" version="2.0">
<channel>
<item>
<id><![CDATA[ 1 ]]></id>
<title><![CDATA[ Product ]]></title>
<description><![CDATA[ Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi sollicitudin orci et dolor lobortis, nec elementum metus mattis. Vestibulum et commodo ante. ]]></description>
<g:product_type><![CDATA[ Level 1 > Level 2 > Level 3 > Level 4 ]]></g:product_type>
<brand><![CDATA[ Brand ]]></brand>
<link><![CDATA[ https://connectif.vtexcommercestable.com.br/product/p?idsku=13 ]]></link>
<image_link><![CDATA[ https://connectif.vteximg.com.br/arquivos/ids/155403_2 ]]></image_link>
<sale_price><![CDATA[ 6,00 ]]></sale_price>
<sale_price_with_tax><![CDATA[ 7,00 ]]></sale_price_with_tax>
<g:availability><![CDATA[ in stock ]]></g:availability>
</item>
</channel>
</rss>

1.3. Generating the XML Feed URL

11. Once the template is saved, VTEX will generate the XML feed and, in the URL column, the public URL will be available, which will look similar to the following:

https://{your-workspace}.vtexcommercestable.com.br/XMLData/{your-template-name}.xml

12. Access that URL from a browser and check that the XML is being generated correctly.

STEP 2. Synchronizing the XML feed with Connectif

13. Access your Connectif Store, go to "Ecommerce > Catalog" and click on Product synchronization.

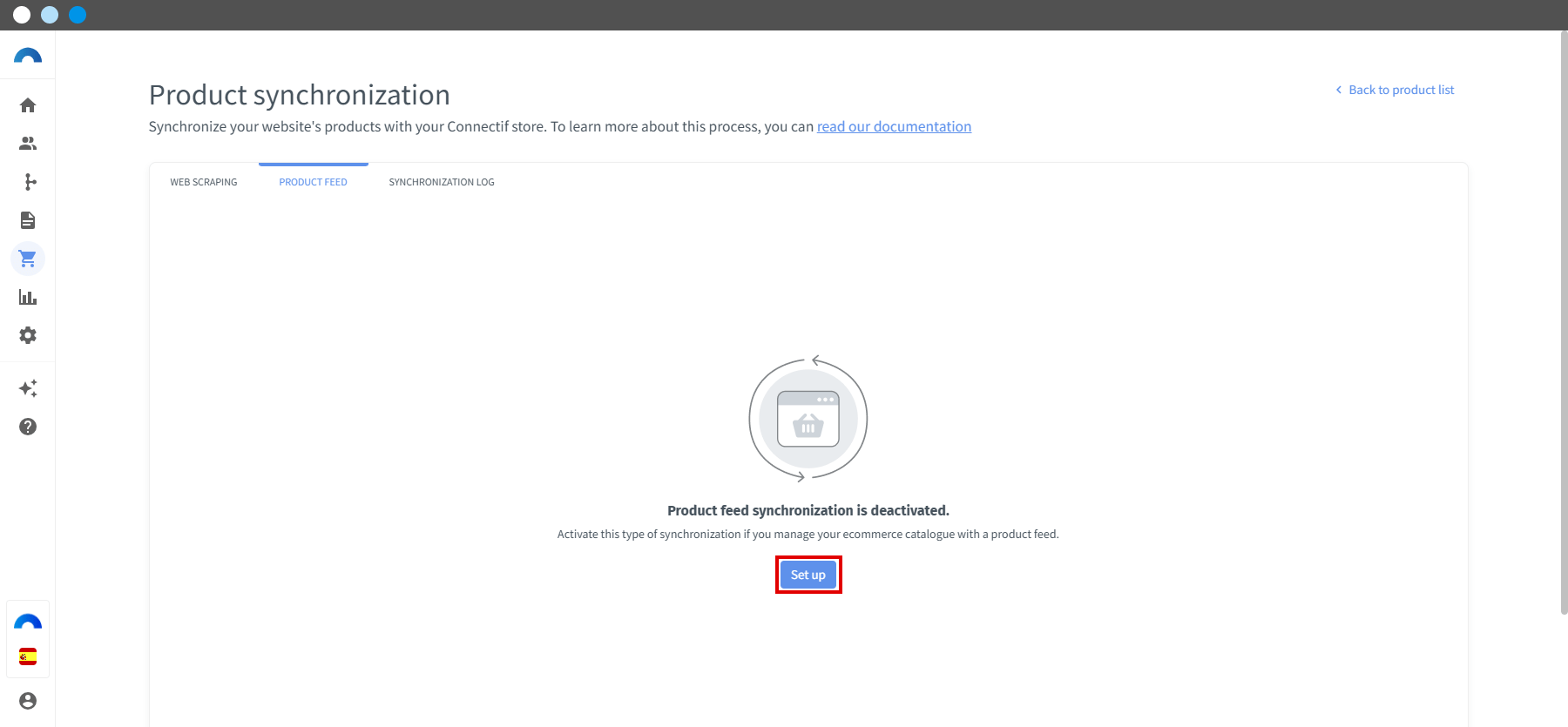

14. Go to the Product feed tab and click Configure.

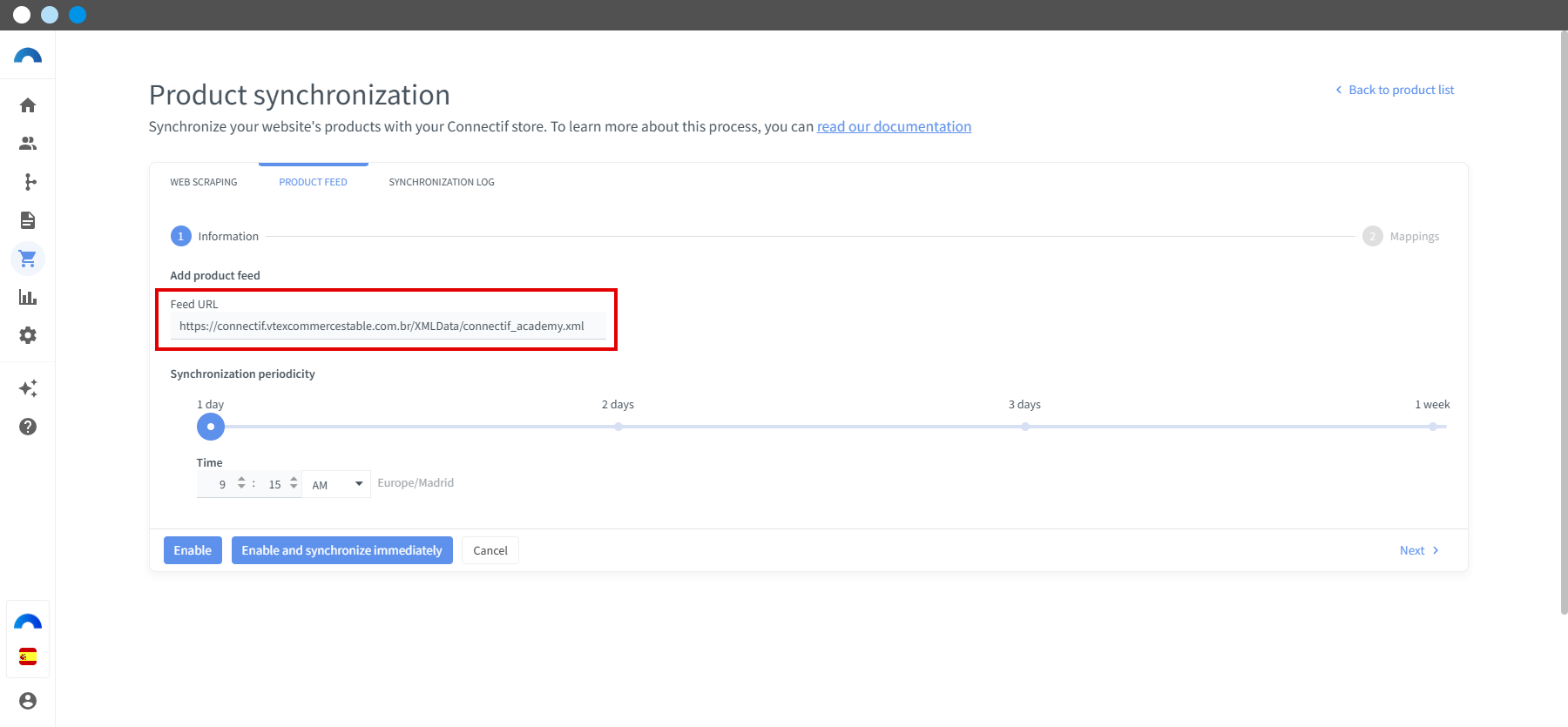

15. In the Add product feed area, add the URL of the product feed you just created.

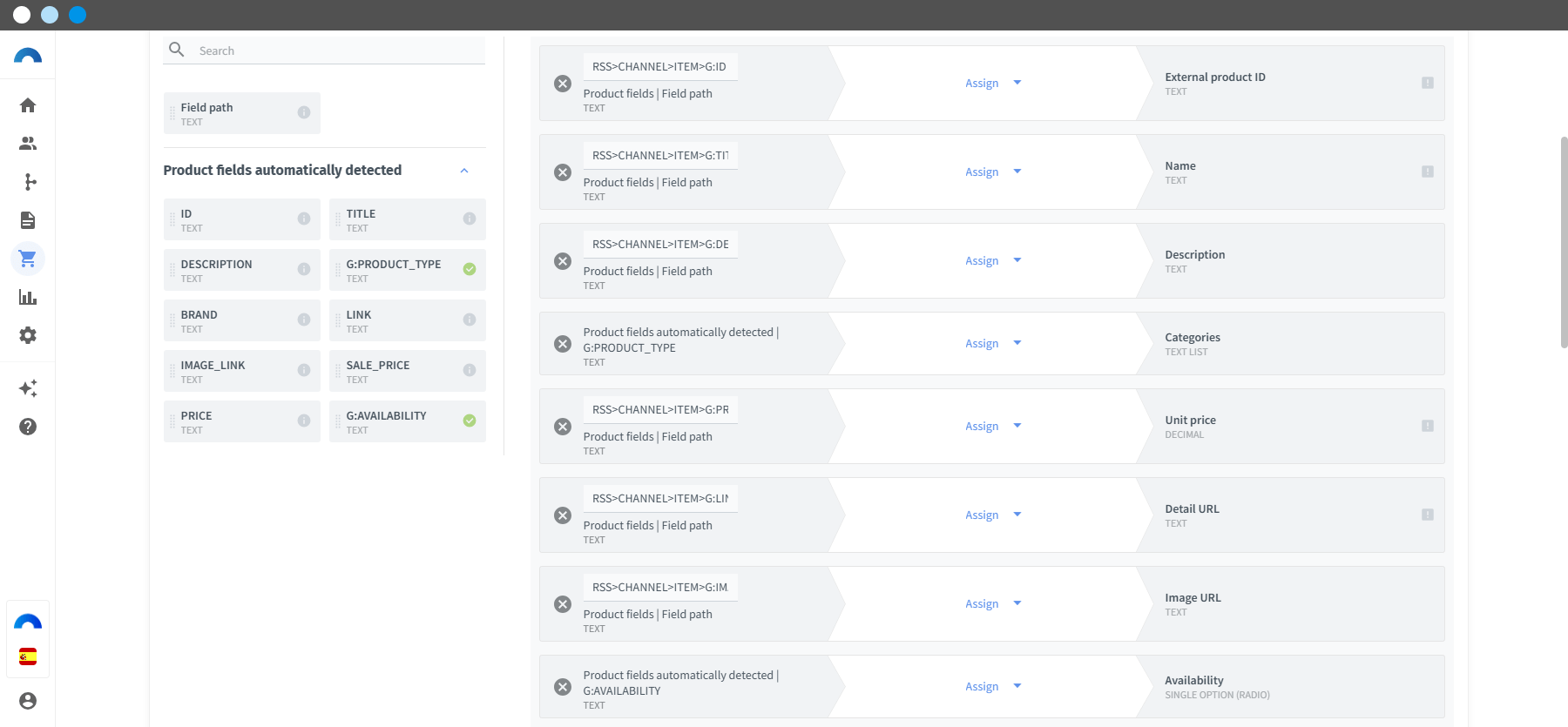

16. Map the parameters of your XML Feed with those in the Connectif Product Sheet.

17. Once the synchronization settings are defined, click Activate to schedule the synchronization, or Activate and synchronize immediately to run a synchronization and schedule the next one within the established period.
