Workflows Area

Workflows is where all the flows created in your Connectif account are stored. Via this screen you can access and manage your various strategies as well as create new workflows and start those that are ready.



How to access it

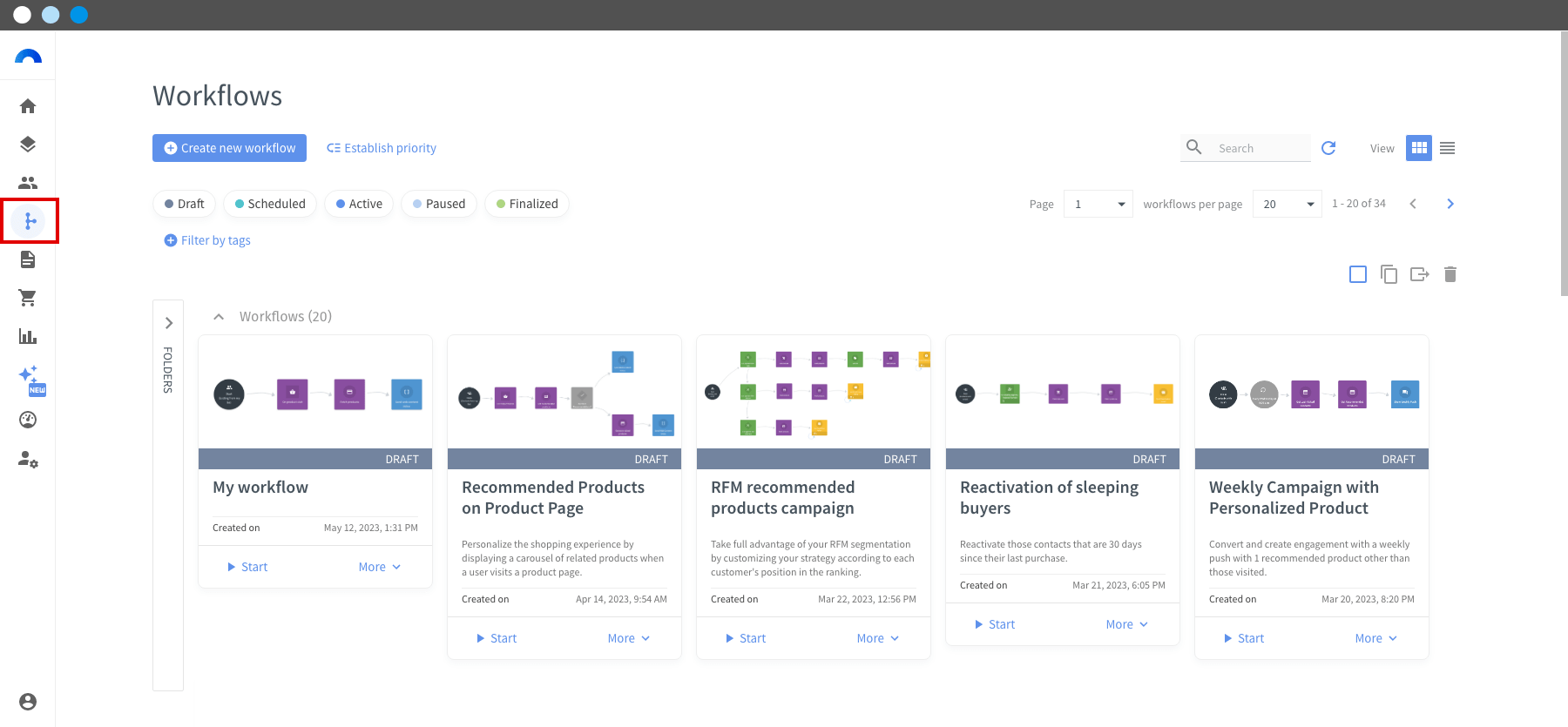

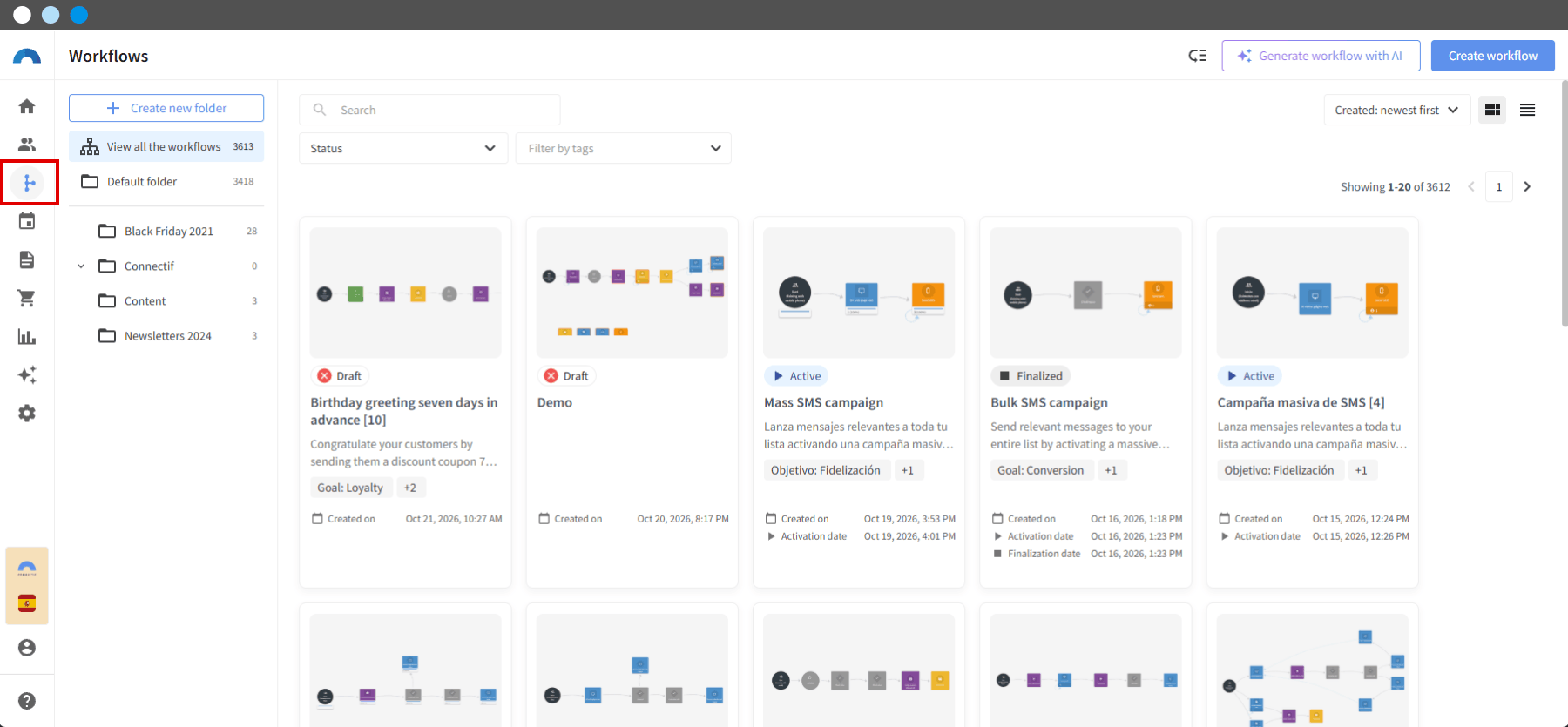

You can access the Workflows interface through the login button on your account.




Interface

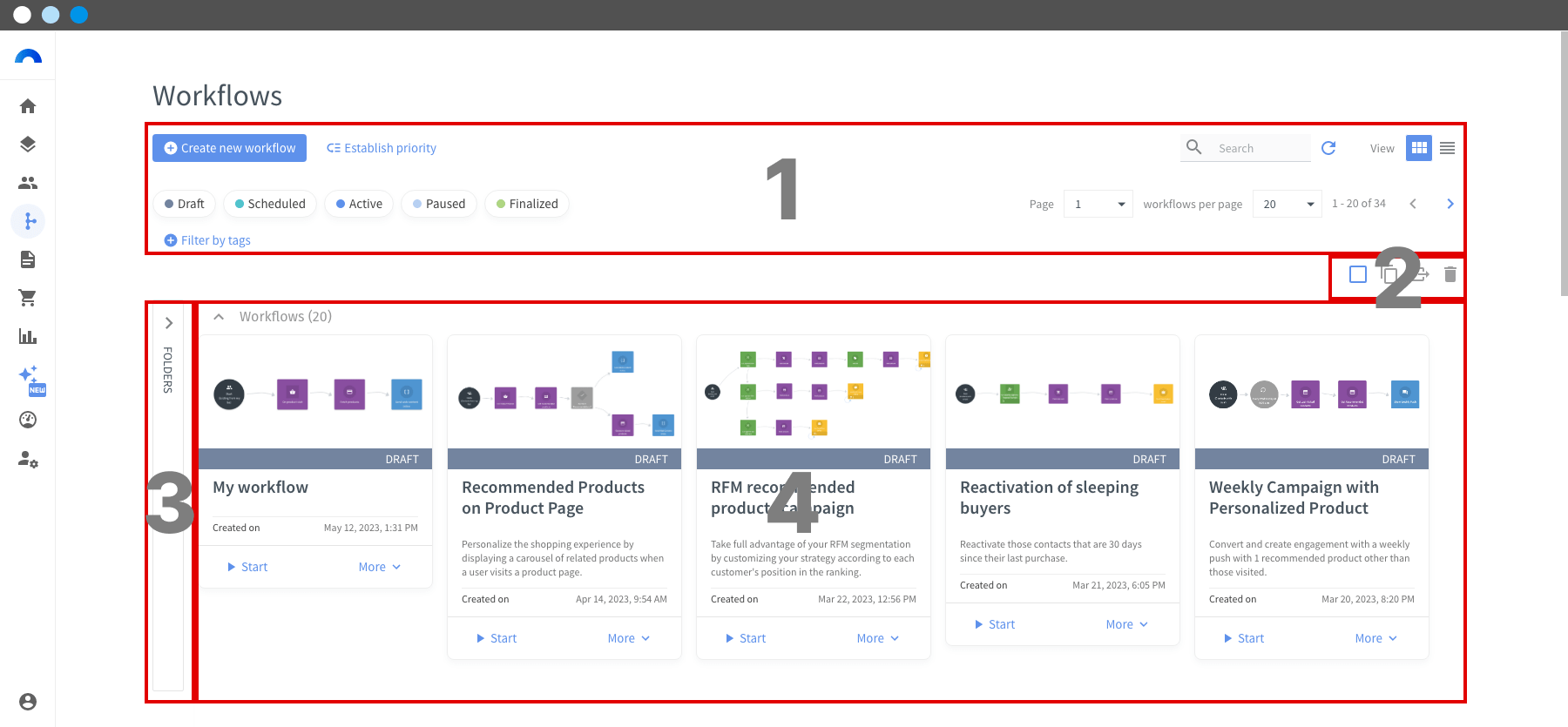

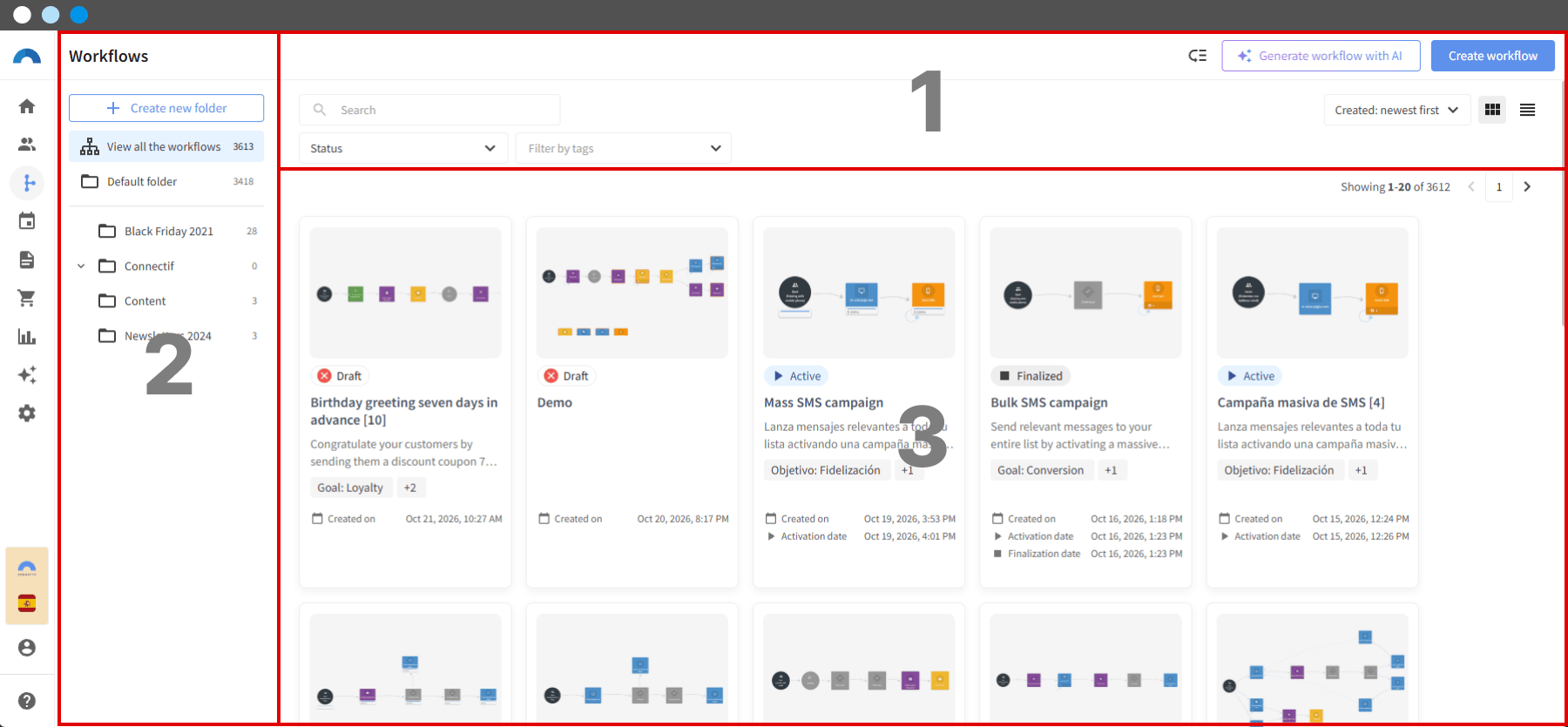

The main interface of Workflows is made up of four blocks:

1. Creation, priority, search and filtering: to create a new workflow, sort existing flows by priority, and locate or screen the results shown in the list.

2. Selection, duplication, export and deletion: to select/deselect all workflows and duplicate, export or delete the selection.

3. Workflow folders: to organize workflows by folders and subfolders.

4. Workflow list: to browse workflows. It shows all the existing content by default and, when using the filters, the resulting selection. Each of the workflows listed will present some options, depending on the state they are in:

  • Edit: to design a workflow. In flows that are in draft form, which you need to finish creating in order to activate them.
  • Start: to start a workflow. In flows that are in draft form and do not contain incidents.
  • Finalize: to end a workflow. In flows that have been initiated.
  • Live view: to see the statistics of a workflow. In workflows that are finalized and already have data to show, also in active workflows.




How it works

Workflows shows all the flows created in the account by default. Browse its interface or use one of the search features to find the workflow you want to access.

Use priorities and folders to organize your strategies, export them or create a new one through templates, a blank workflow, or by importing an existing workflow.



1. Create a new workflow

There are several options for adding a new workflow to your account:

1.1. Create a blank workflow

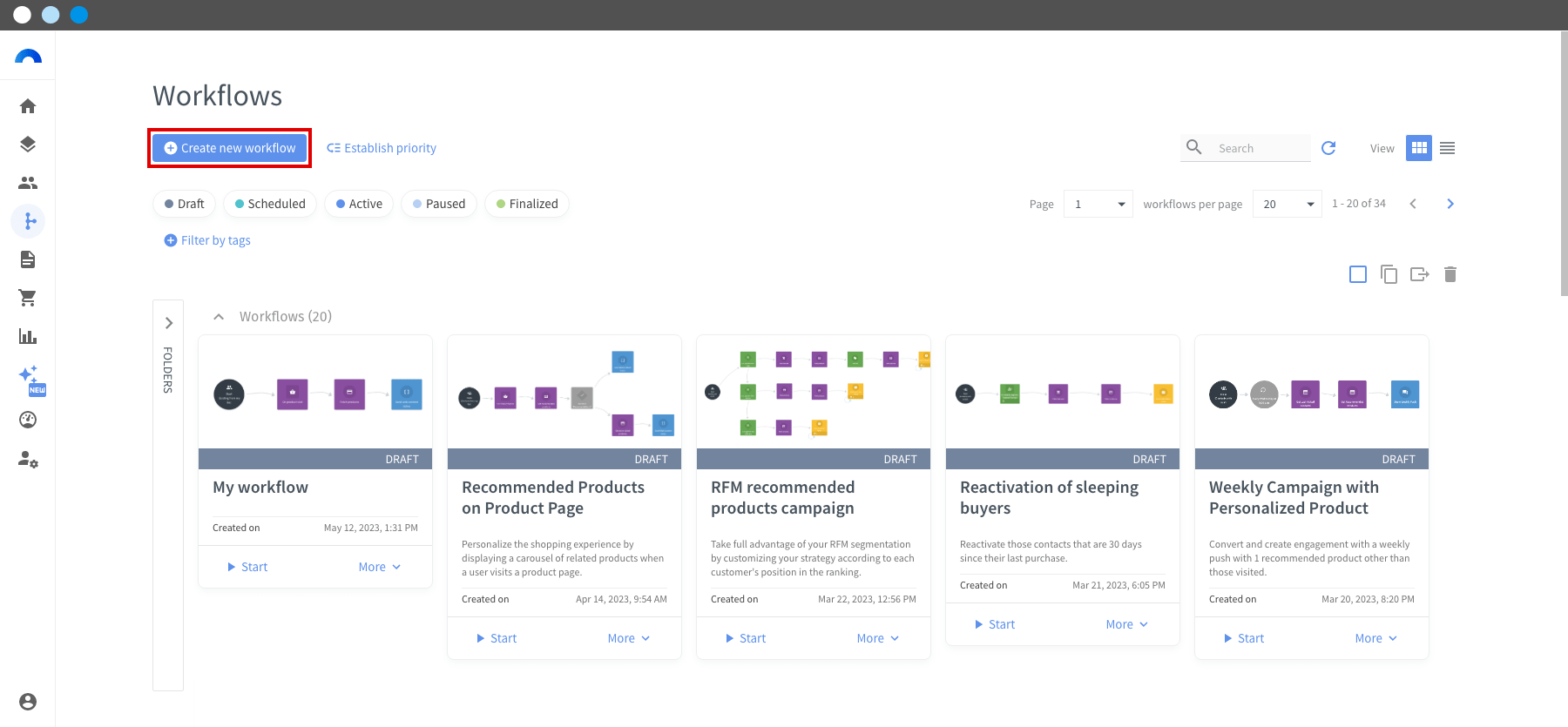

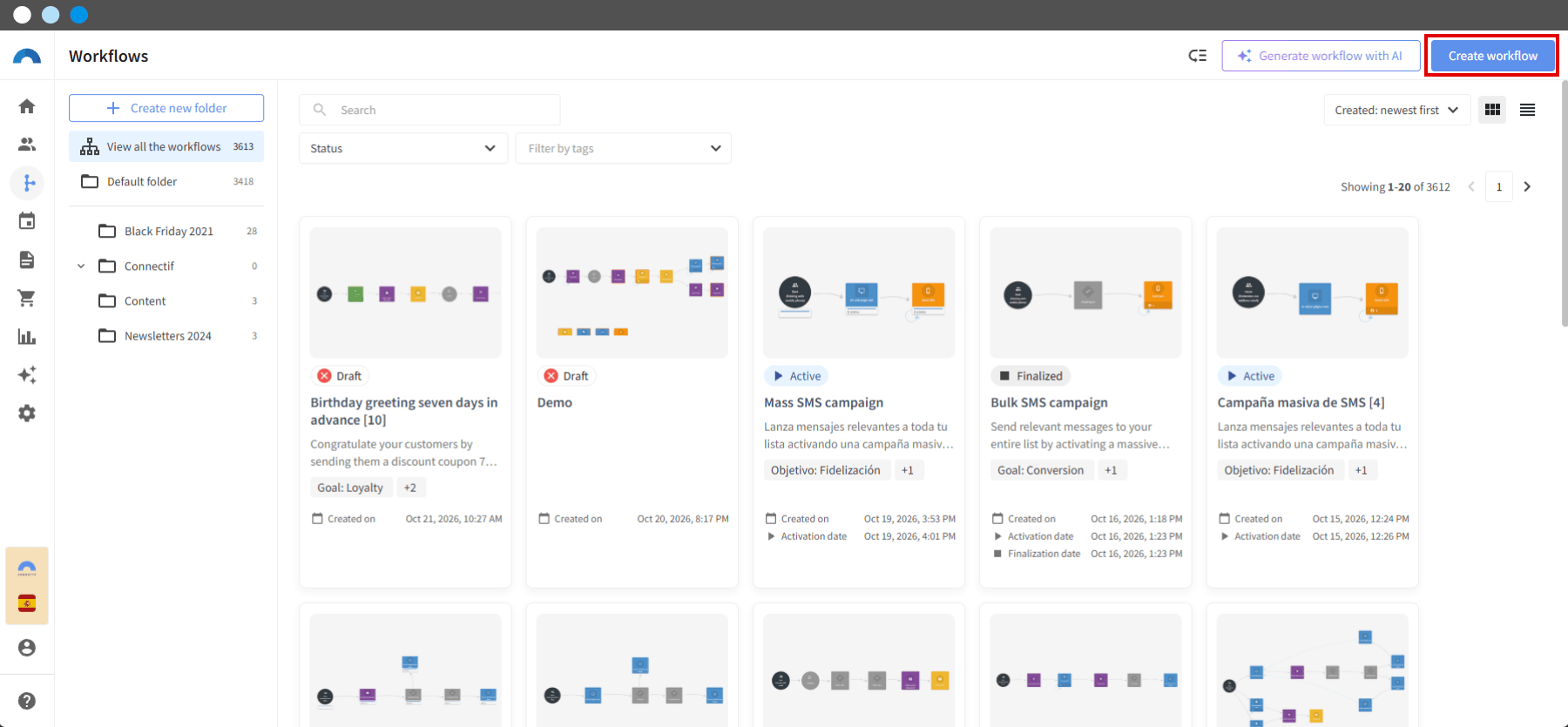

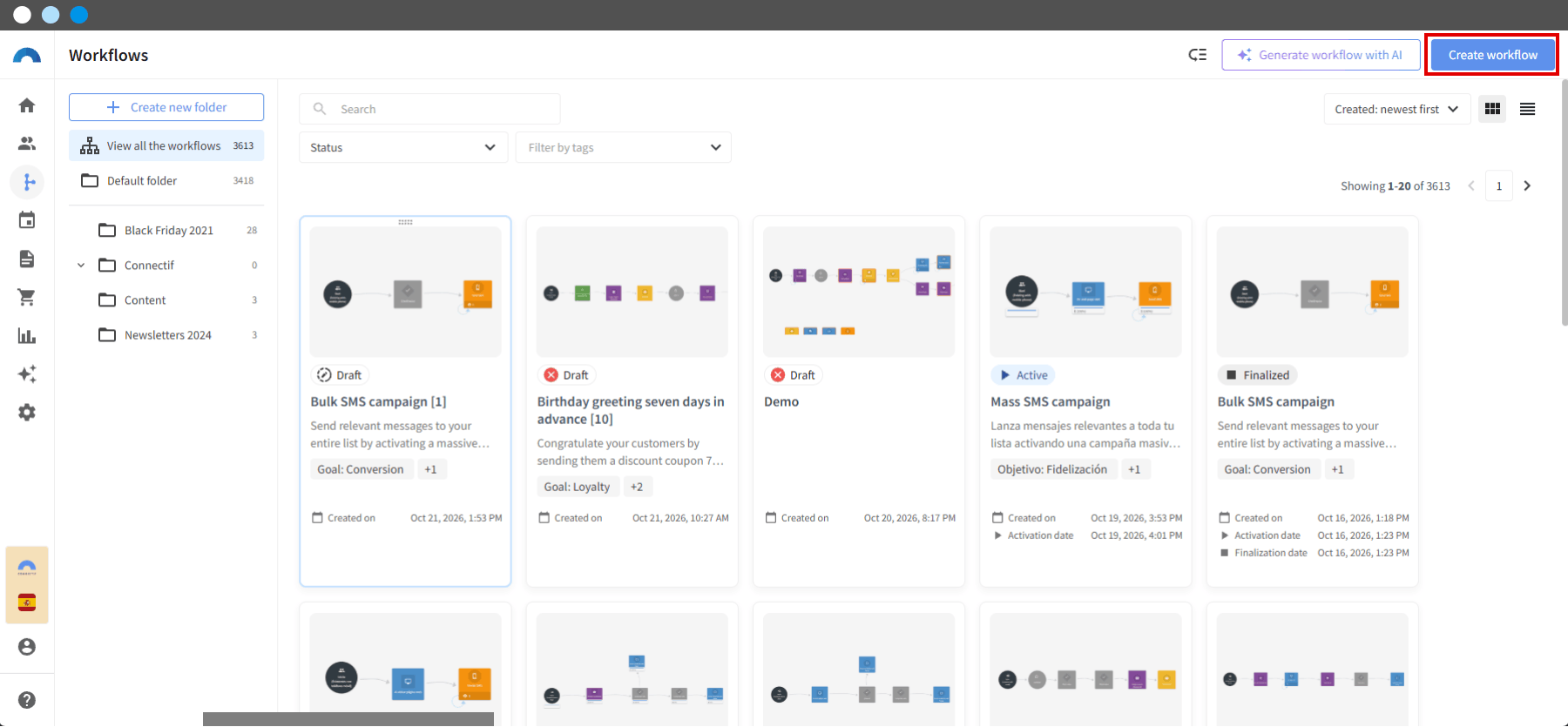

In the creation area (1) click Create new workflow.

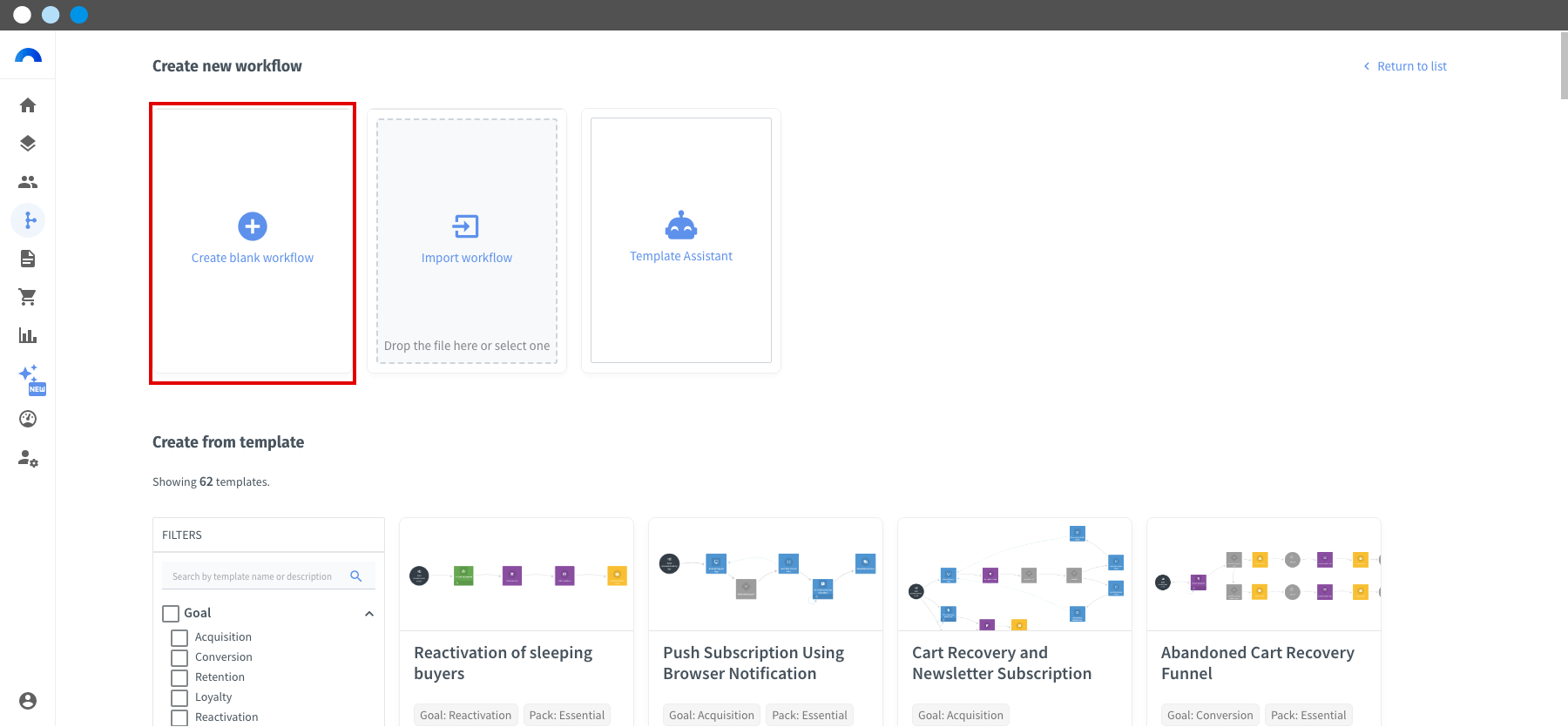

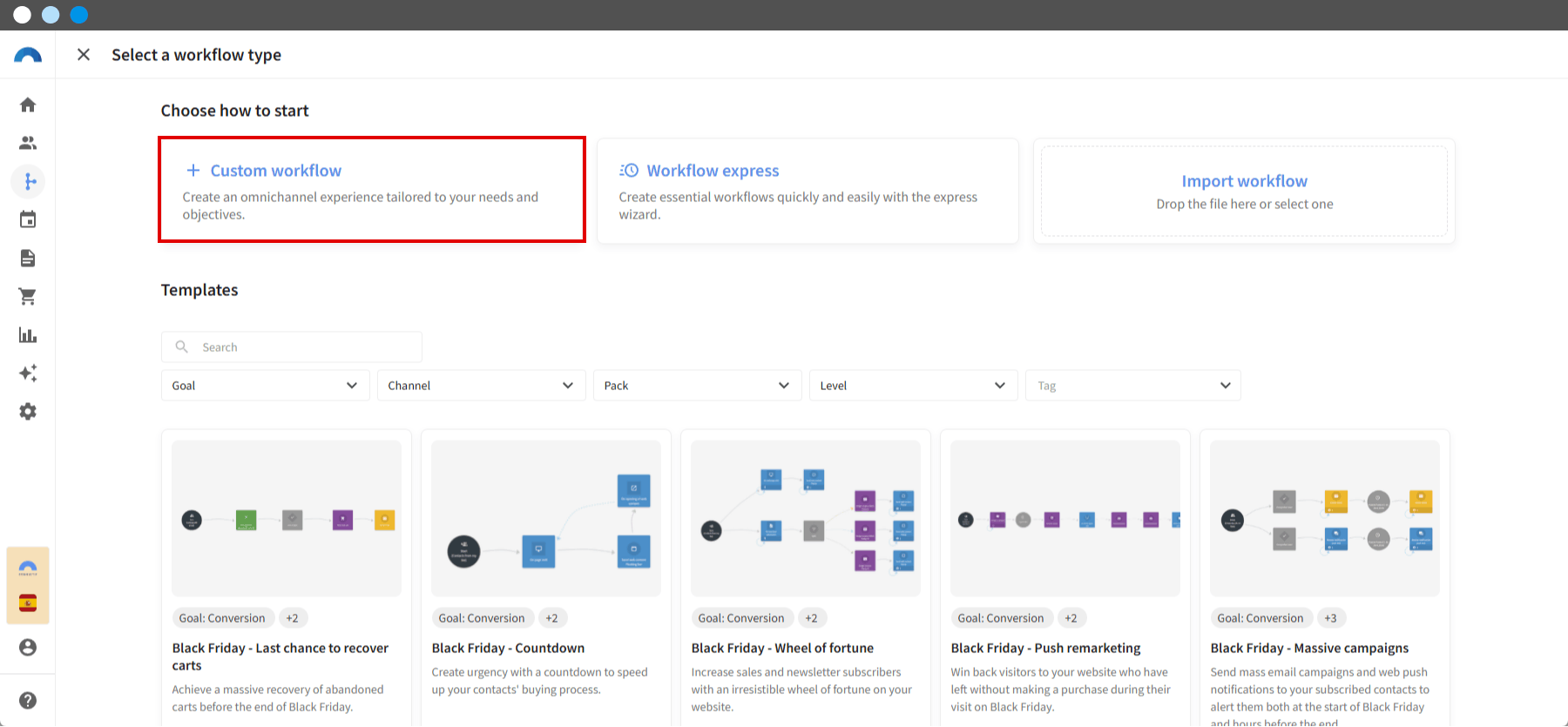

On the next screen, click Create blank workflow.




1.2. Create a workflow from a Connectif template

In the creation area (1) click Create new workflow.


On the next screen, in the workflow template directory, you’ll find groups of workflow templates that you can use as a basis for your strategies.



Learn how to use the workflow template directory in this article.

1.3. Duplicate an existing workflow

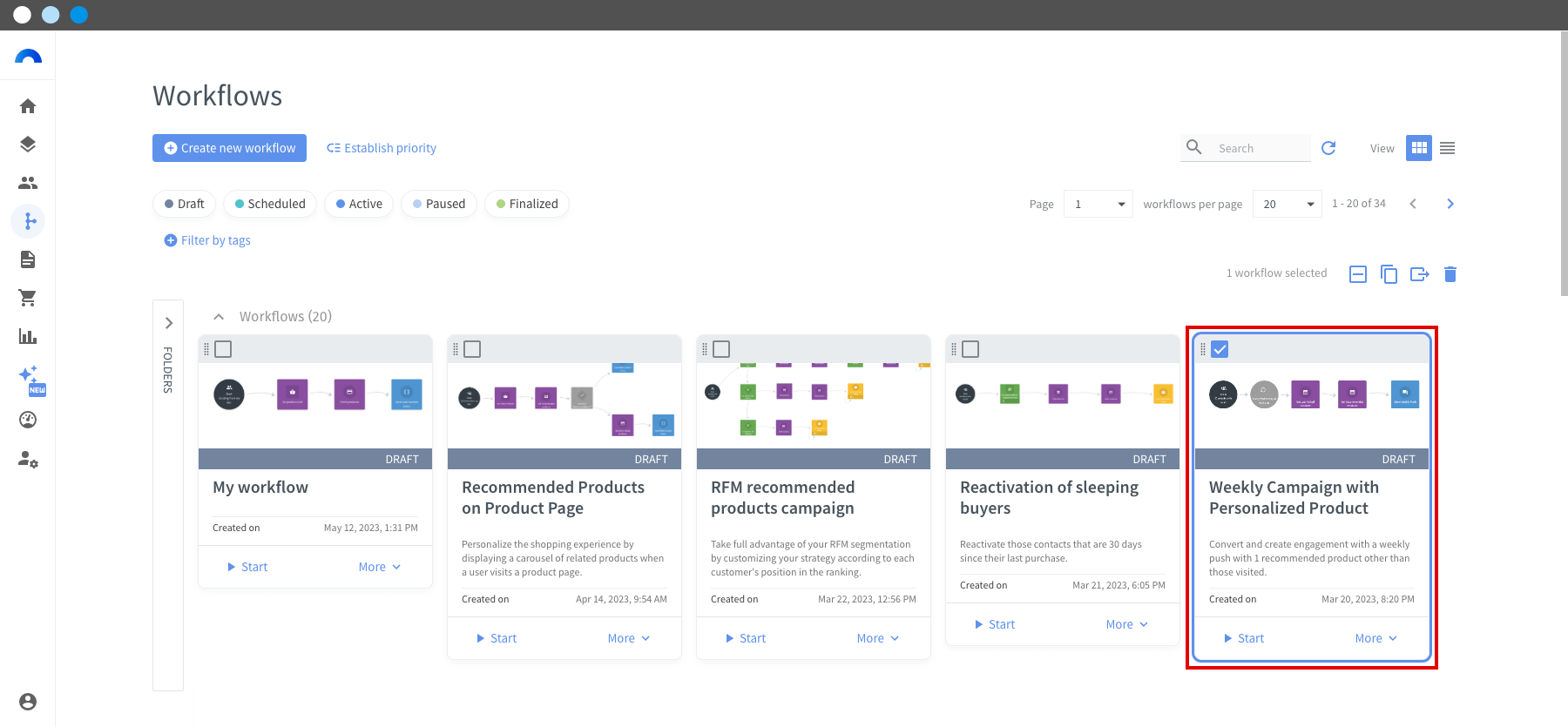

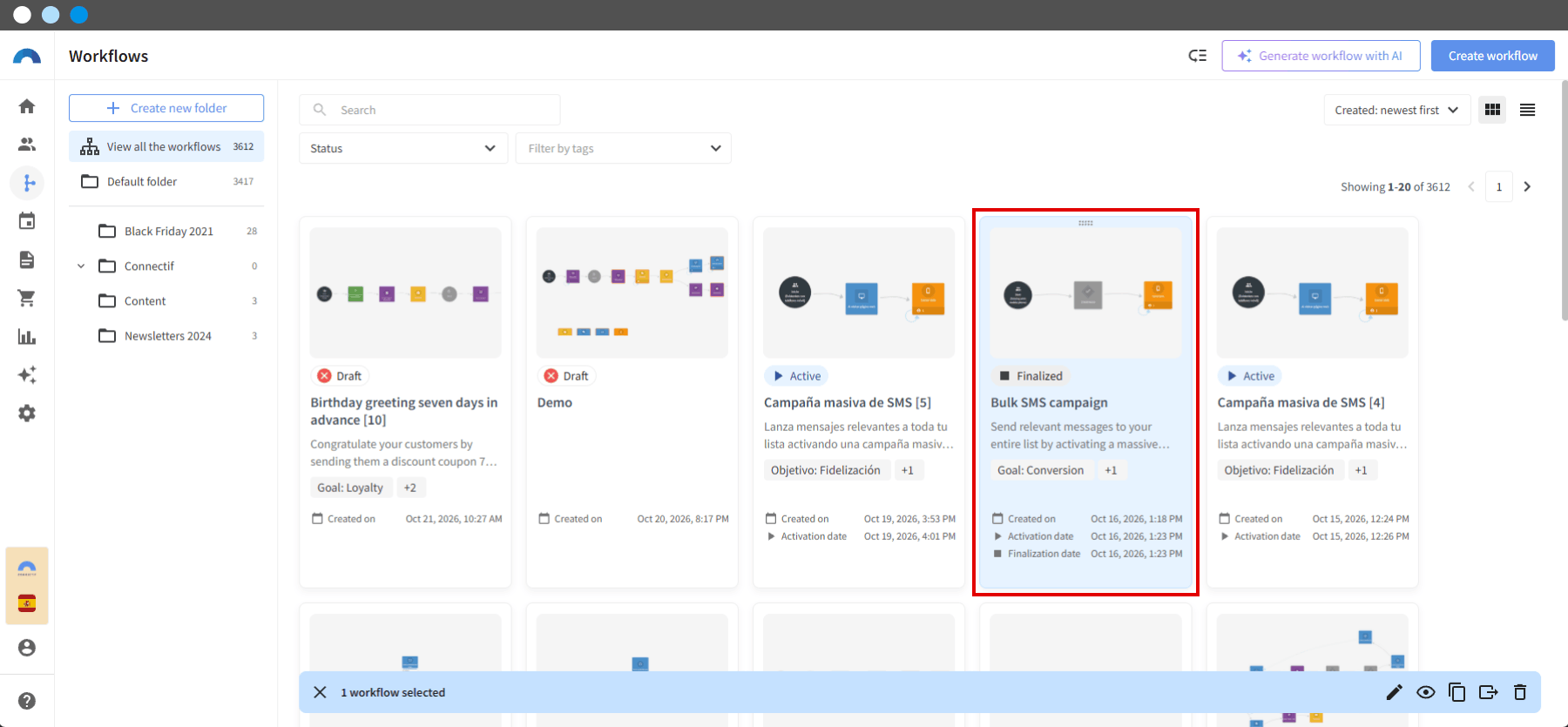

In the list of workflows (4), locate the flow you want to duplicate, hover over it and check the checkbox to select it.



If you want, you can select several workflows to duplicate at the same time.

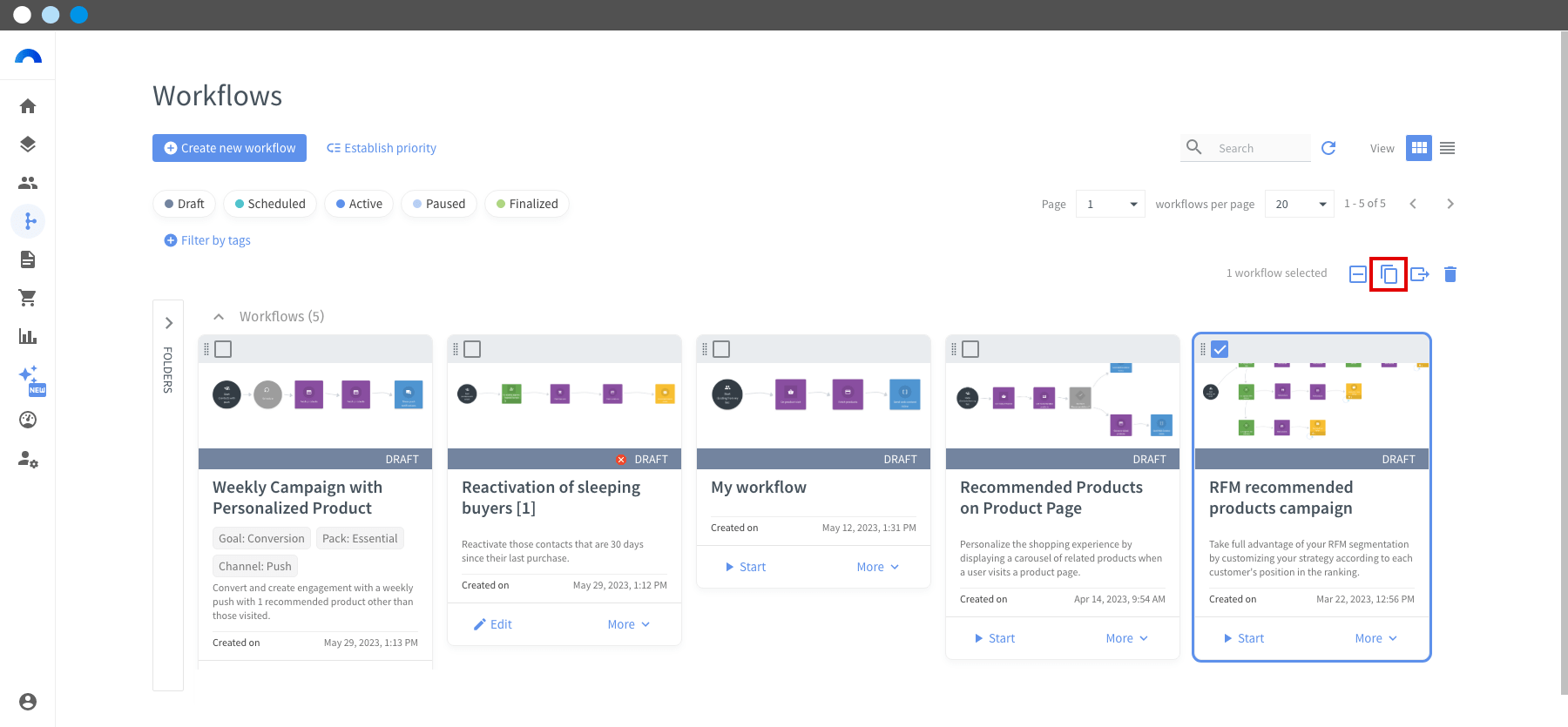

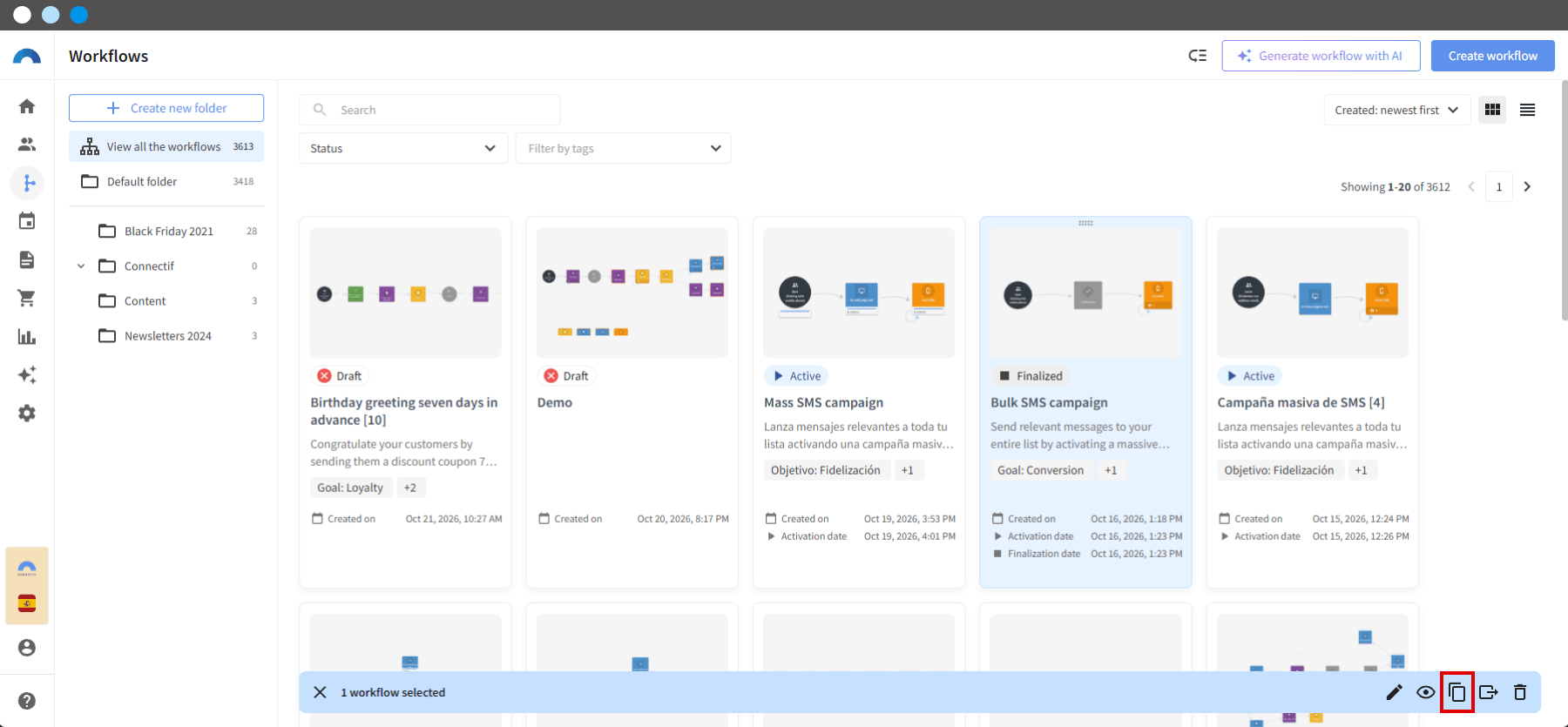

In the selection and duplication area (2), click (Duplicate).

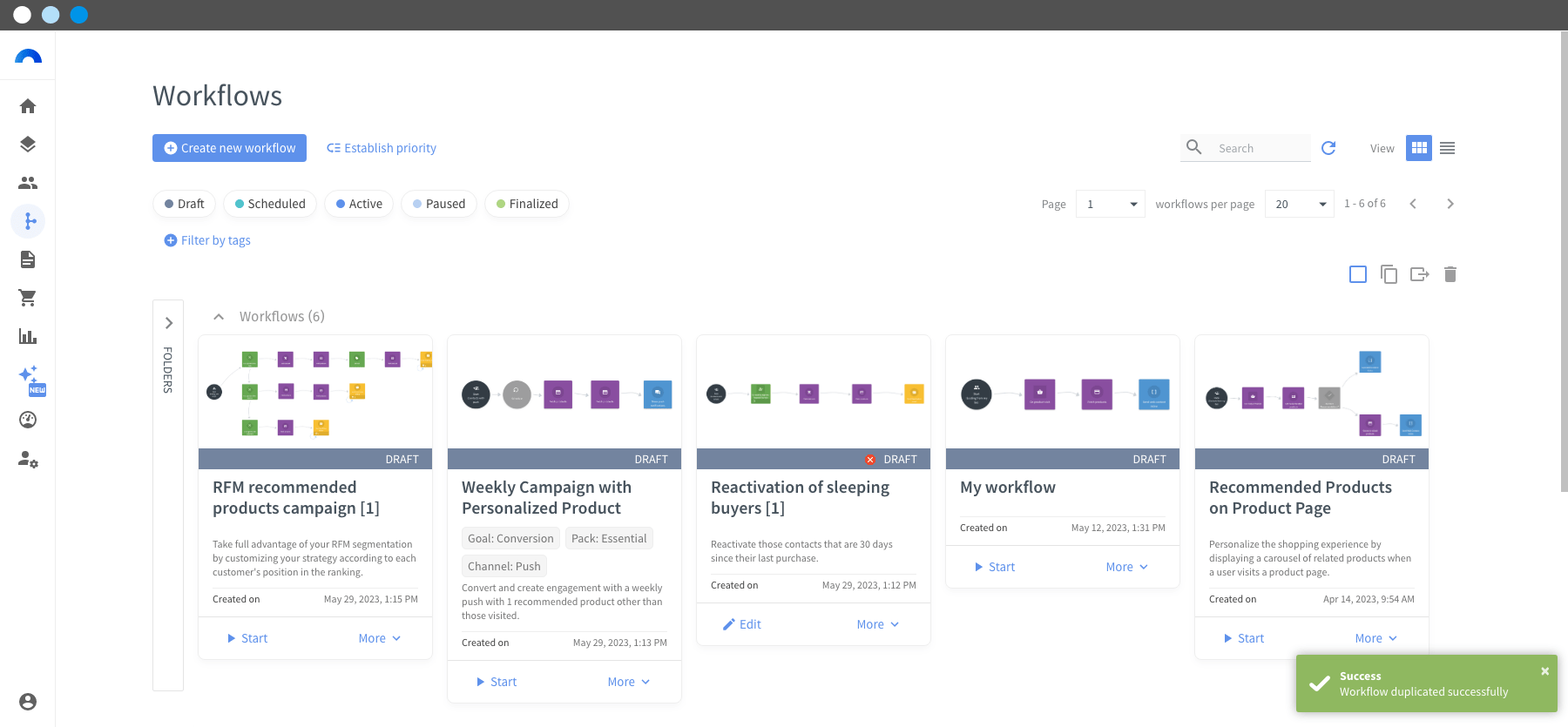

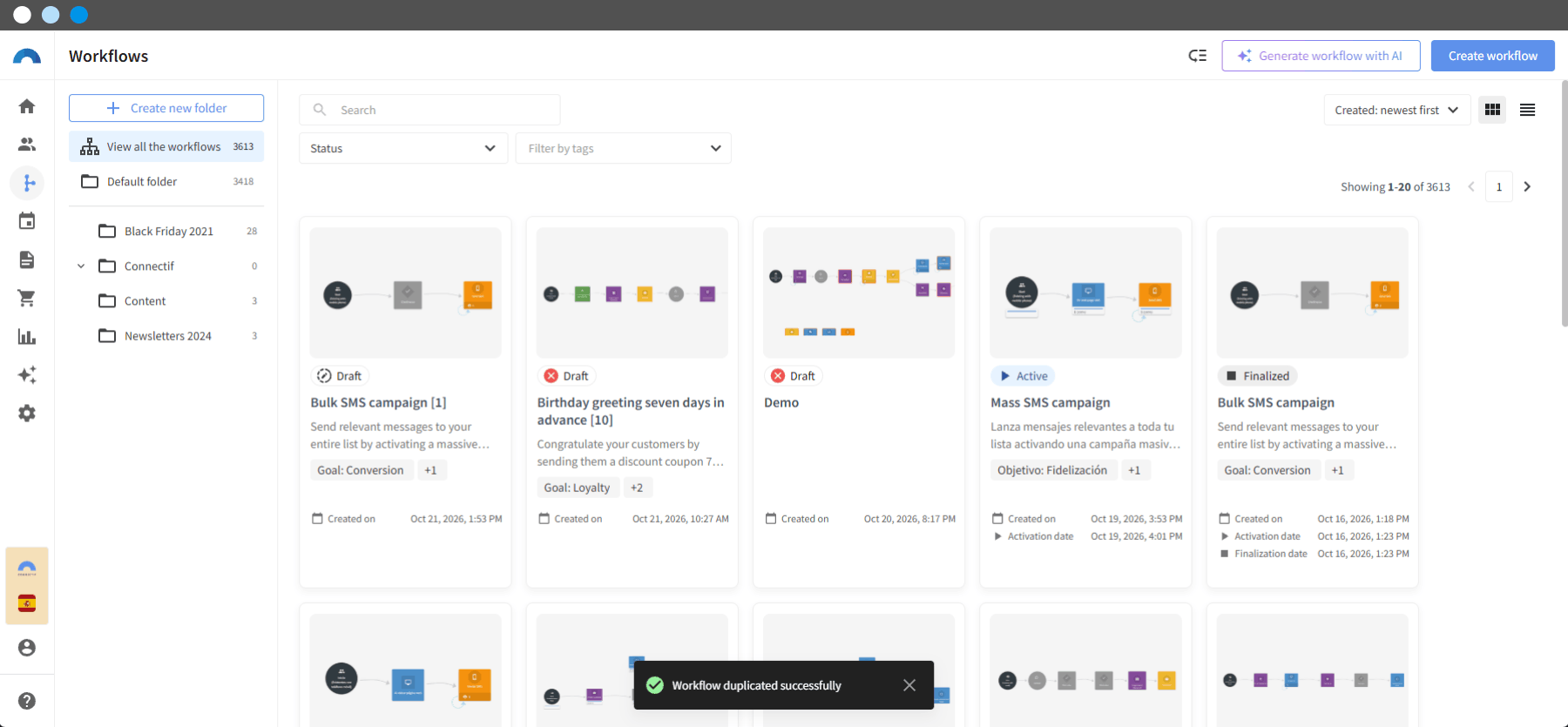

Once duplicated, a success message will be displayed in the list of workflows (4) and the duplicate flow will first appear with the badge [1].




You can also duplicate a workflow from the list of workflows (4) by clicking More and Duplicate.

2. Edit an existing workflow

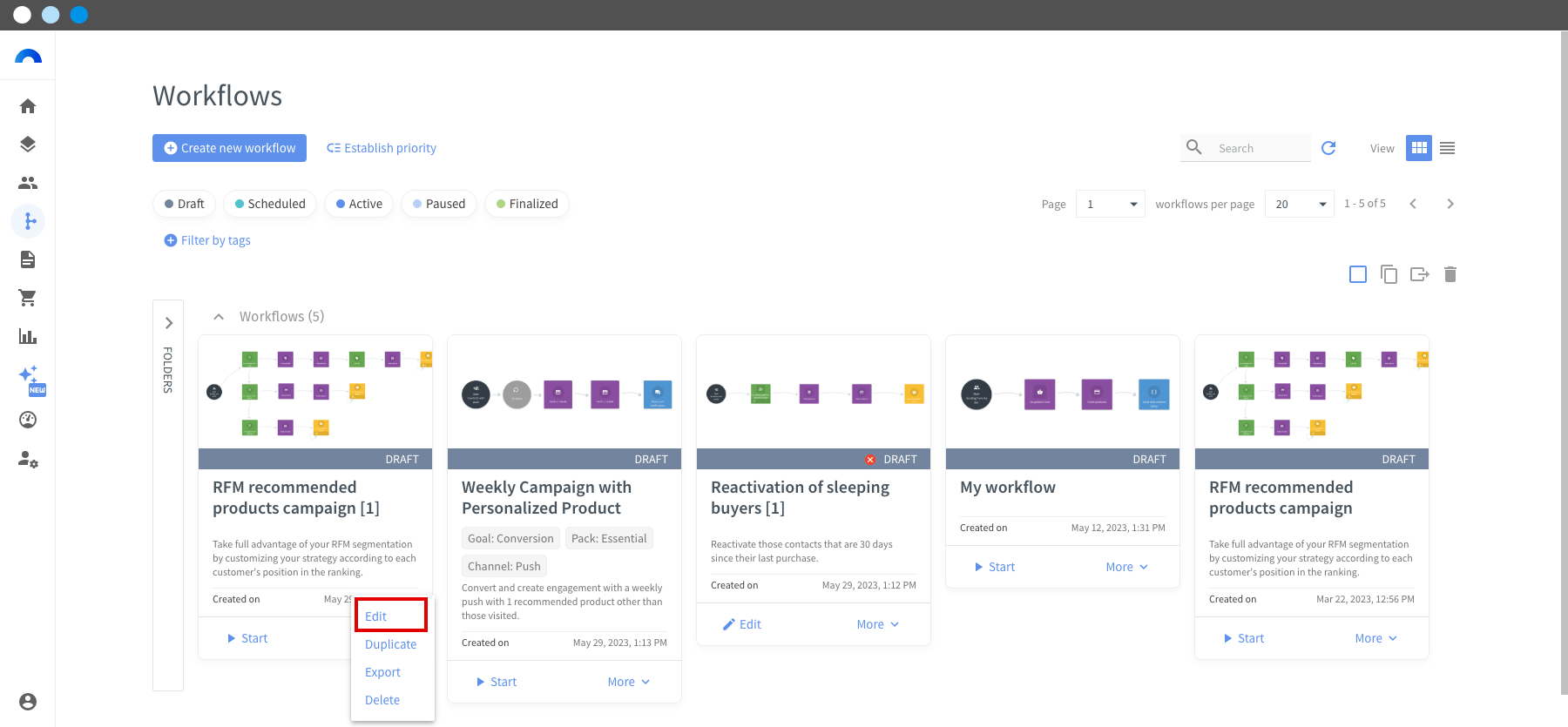

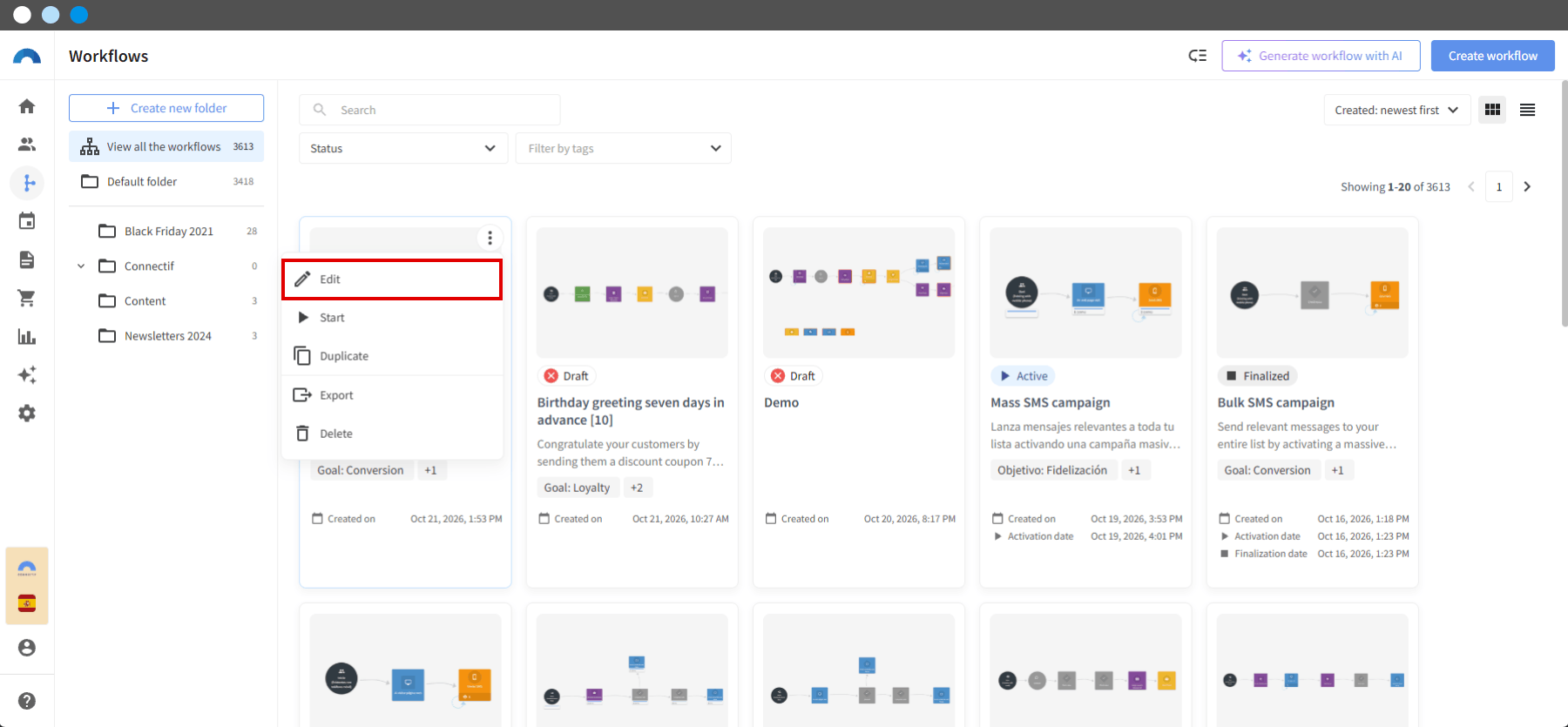

In the list of workflows (4), locate the flow you want to activate and click More and Edit.



If a workflow is already started, it will only be possible to edit some of the configurations of certain nodes, and it won’t be possible to add or remove nodes.


When you click on Edit a workflow, you’ll access the workflow editor where you can continue with its configuration.



Learn how the workflow editor works in this article.

3. Start a workflow

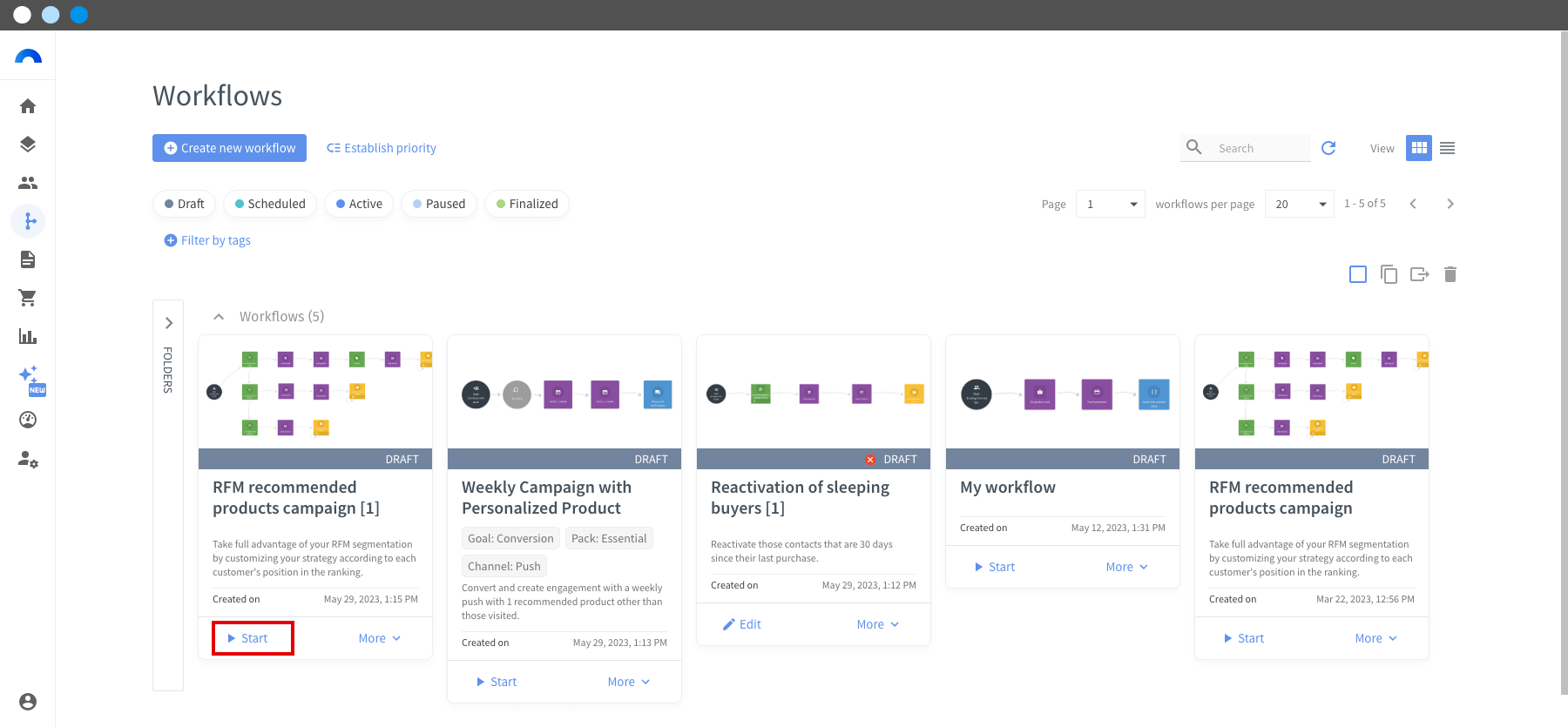

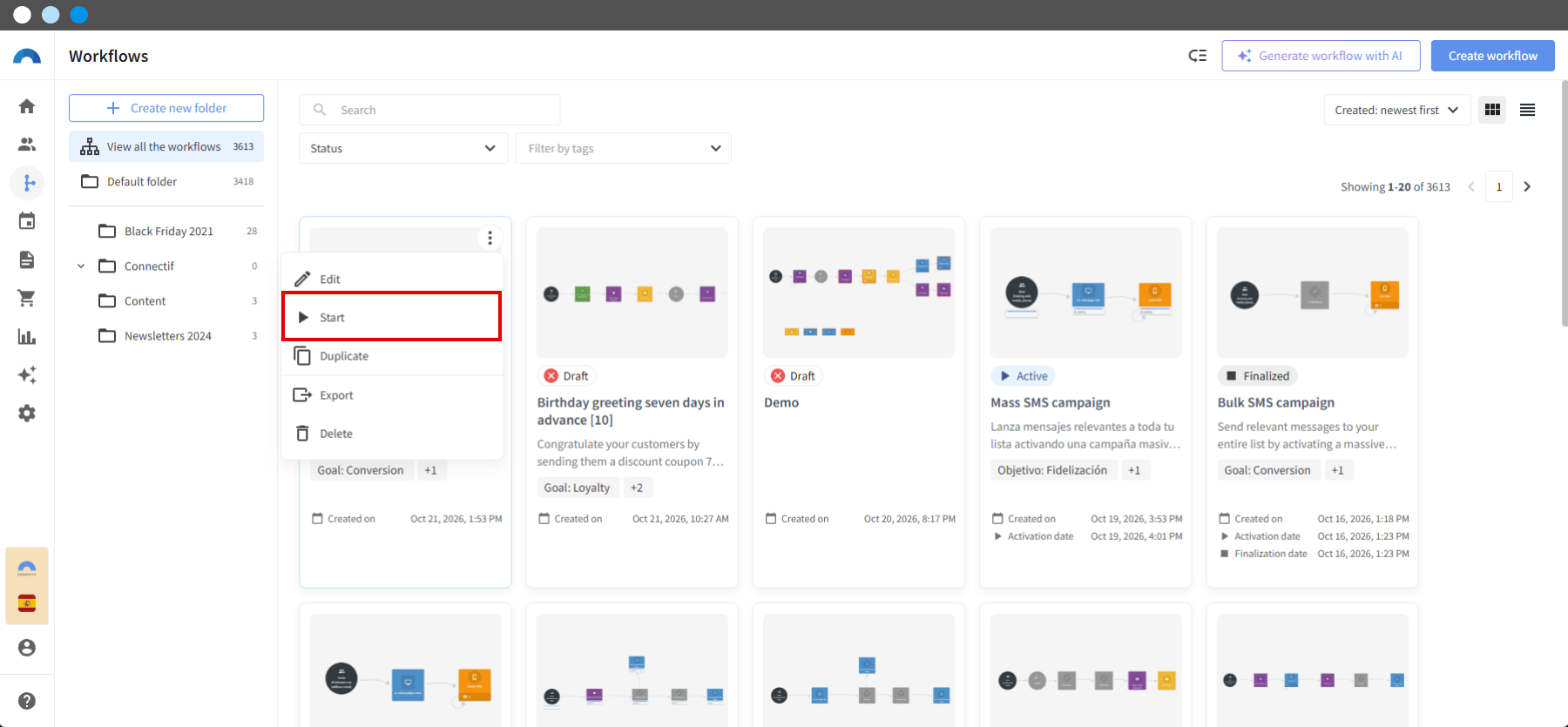

In the list of workflows (4), locate the flow you want to activate and click Start.



The start option only appears in workflows that are properly configured and are in draft.




4. Importing and exporting a workflow

Connectif allows you to export a workflow to a file for sharing later. Once exported, it can be imported to any Connectif account.

When exporting a workflow, the content and forms it contains will also be exported.



You can export any workflow, regardless of its current state: draft, active, finalized, etc. However, you can't export a workflow that contains custom integration nodes.

4.1. Export a workflow for later use



Aspects to consider:
- The segments and custom fields that you have defined will be included in the export file but they will not be created, instead Connectif will try to use the existing segments and fields in the destination account.
- If a product has been inserted as a filter in any node in the workflow, this filter will be excluded from the export.
- References to integrated forms will not be included in the export either.

In the list of workflows (4), locate the flow you want to export, hover over it and check the checkbox to select it.



If you want, you can select several workflows to export at the same time.

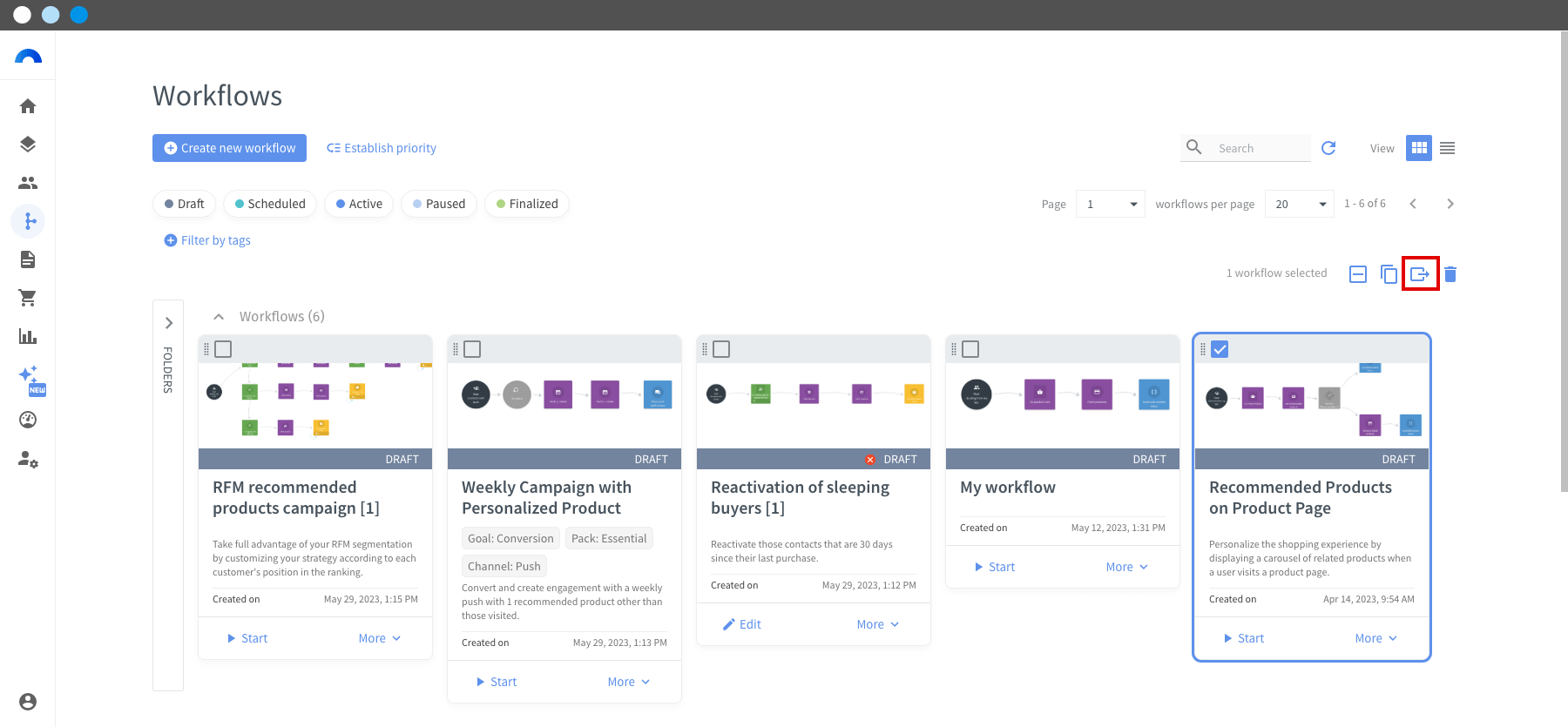

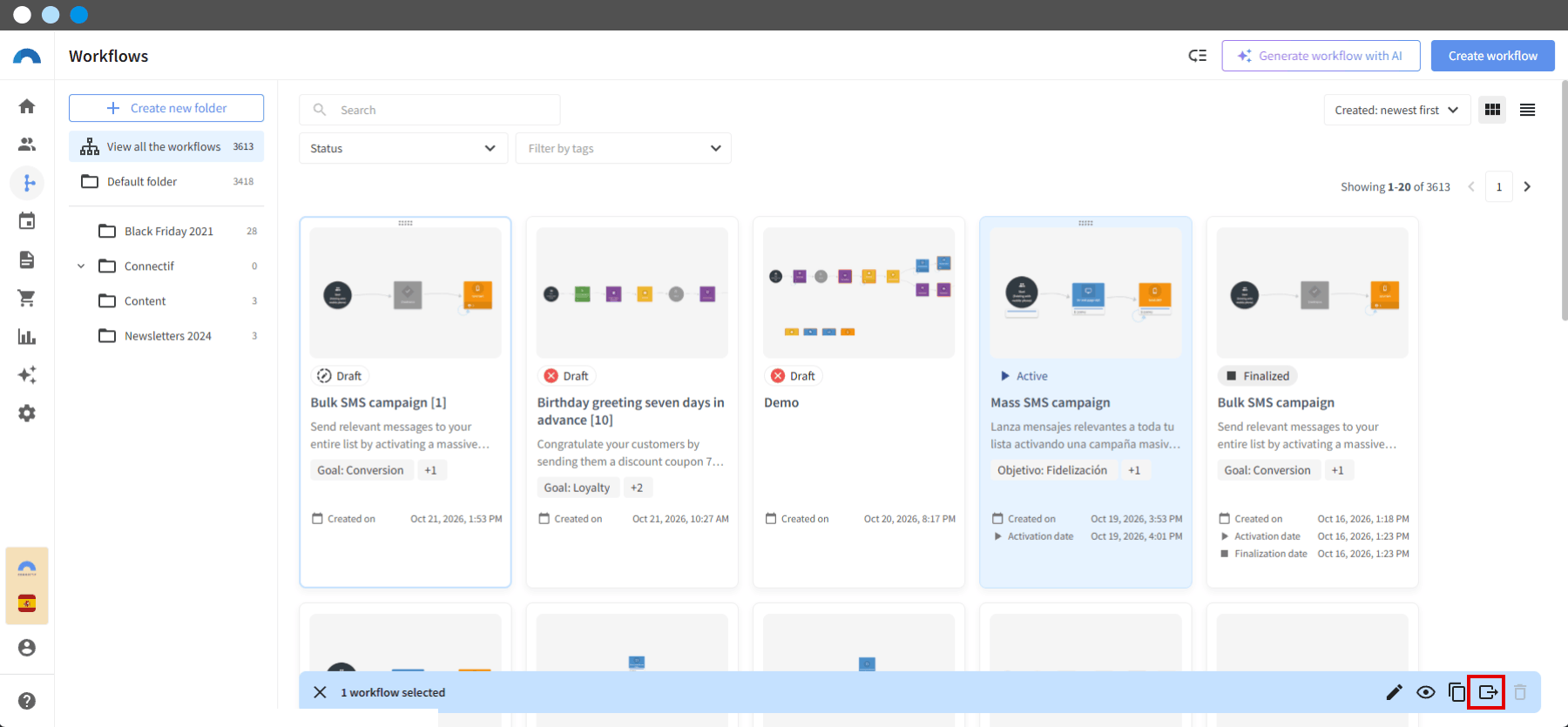

In the selection and duplication area (2) click (Export).

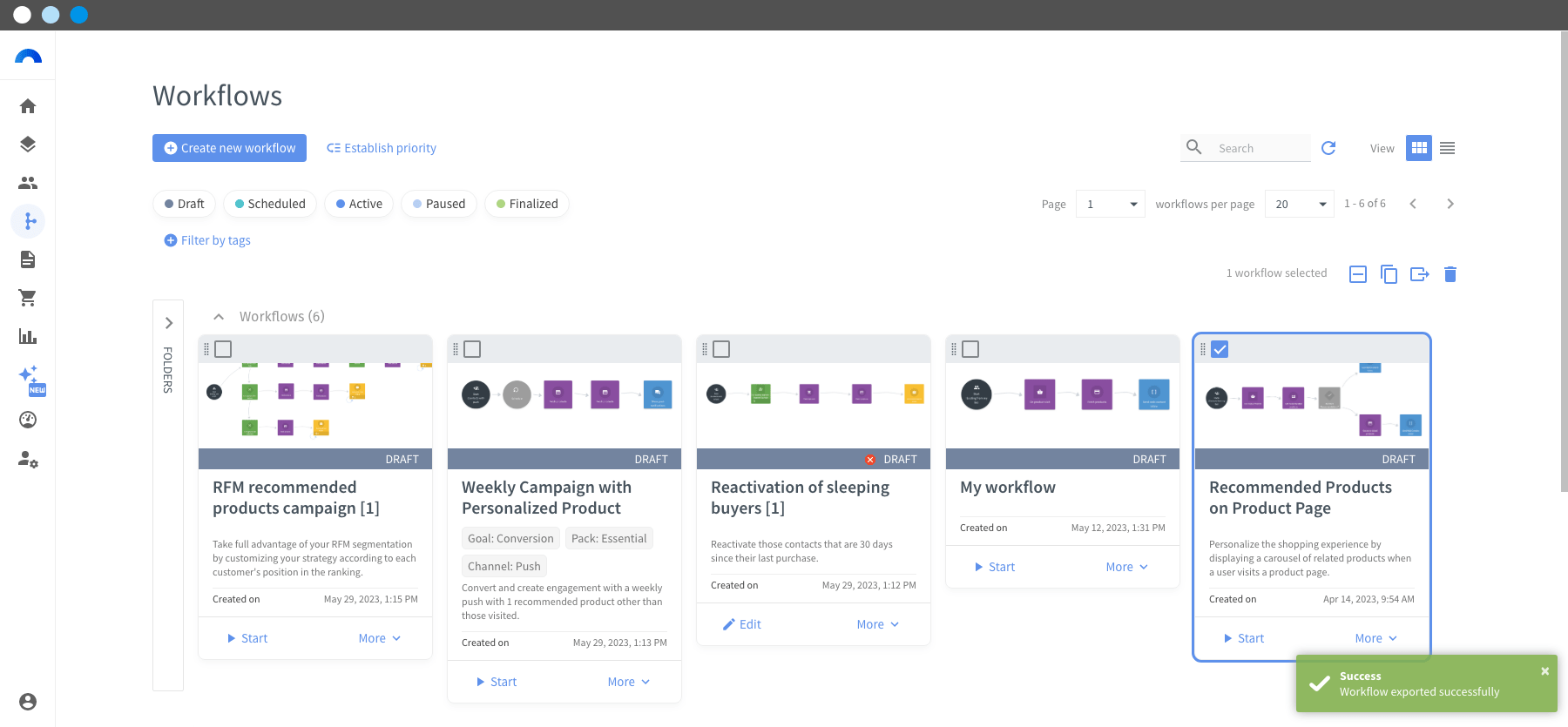

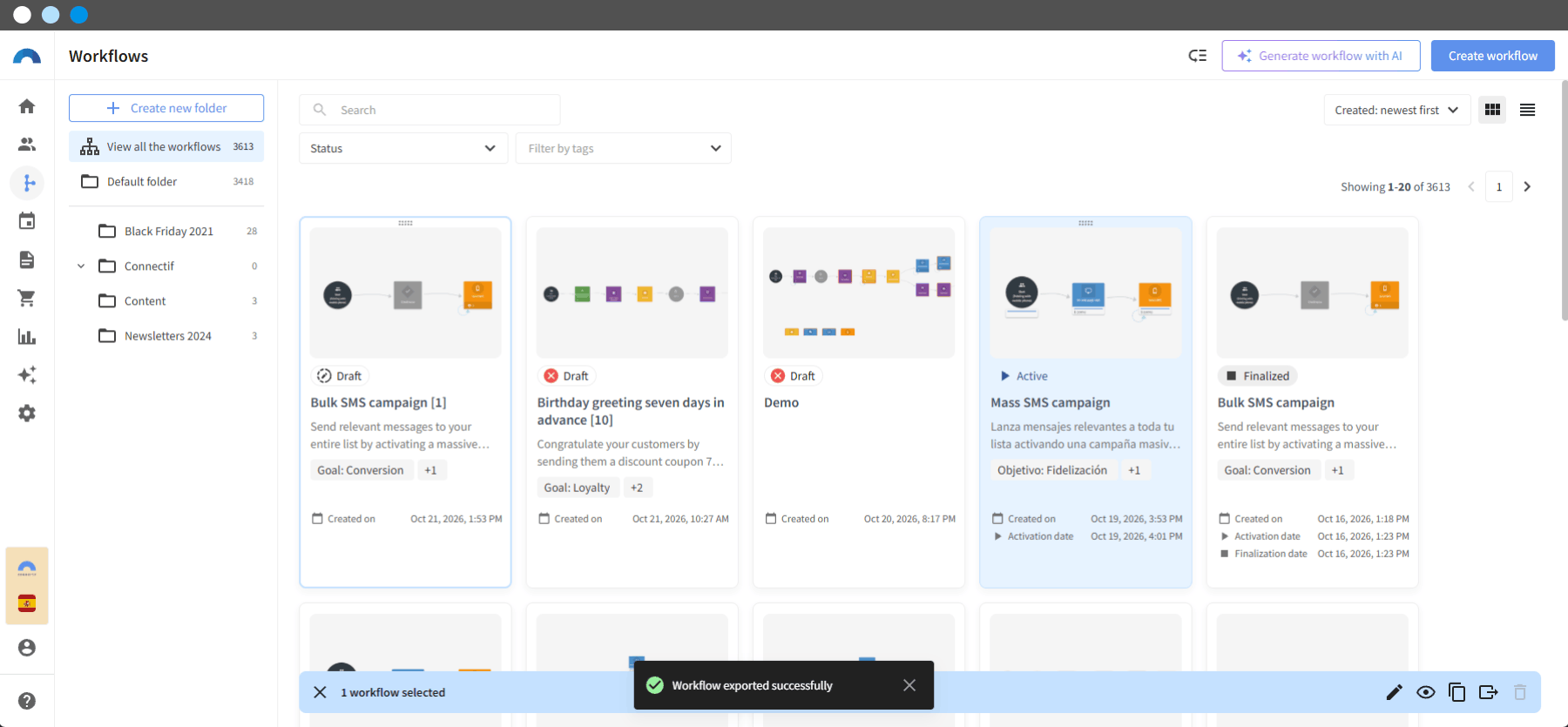

When exporting, a download will start with the export file in “.cn” format and a success message will be displayed in the list of workflows (4).




You can also duplicate a workflow from the list of workflows (4) by clicking More and Export.

4.2. Importing an existing workflow

In the creation area (1) click Create new workflow.

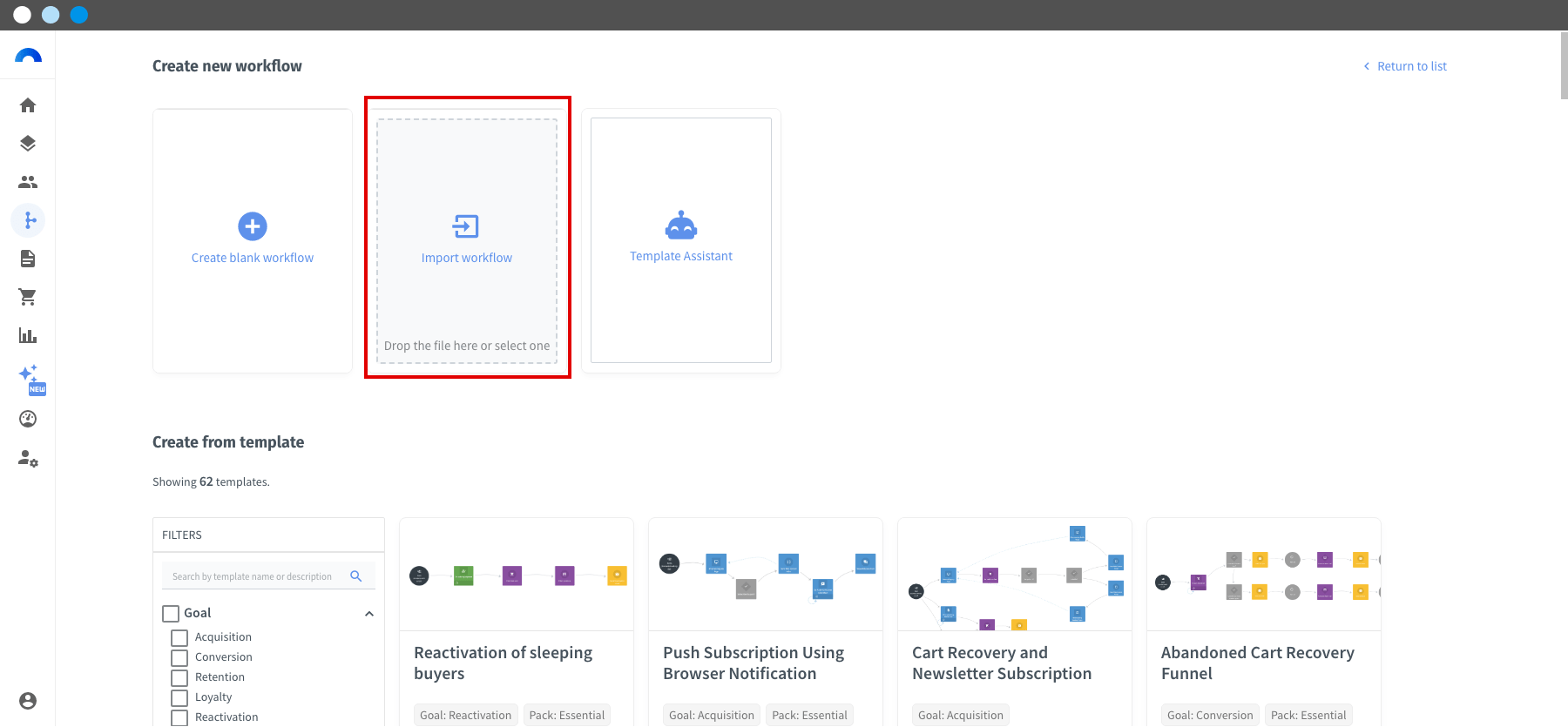

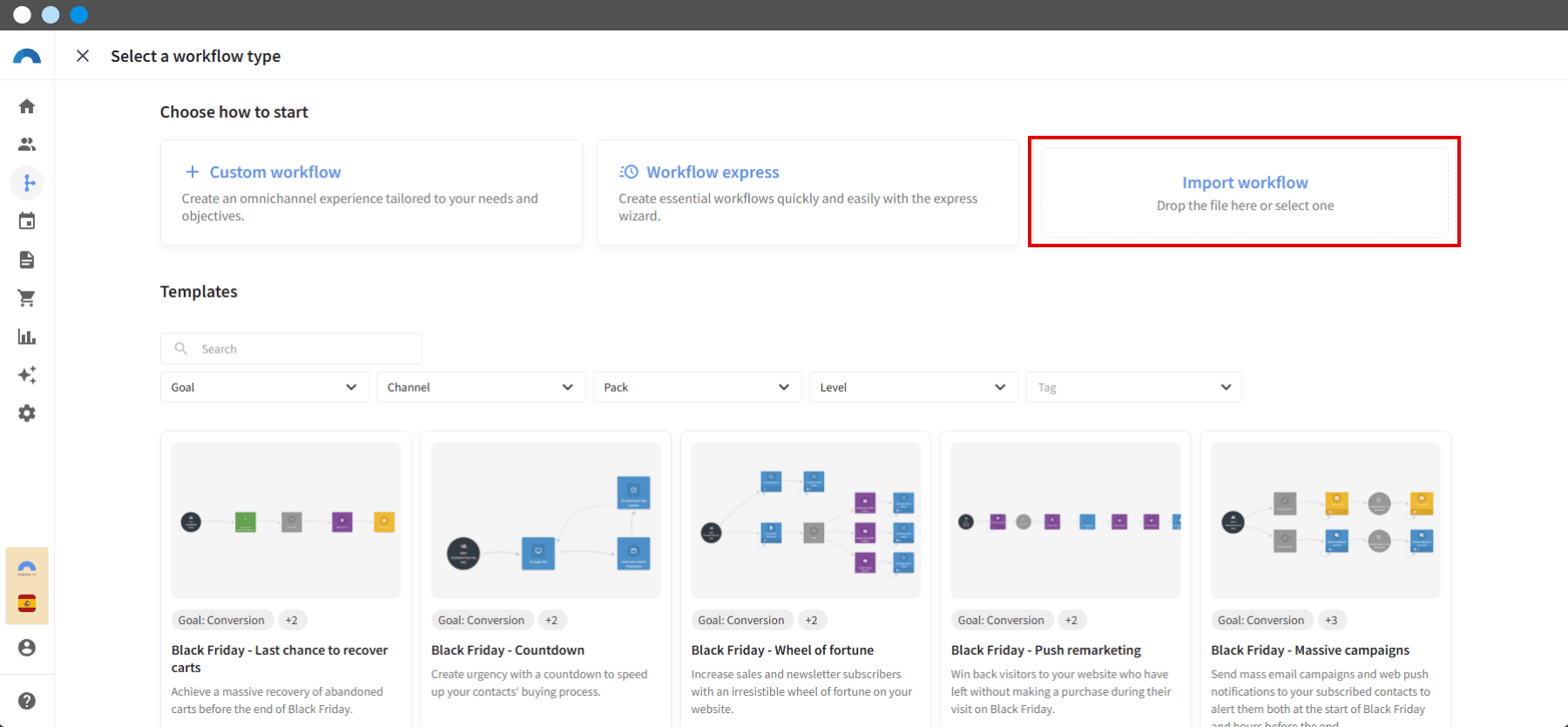

On the next screen, click Import workflow.


Select the file in “.cn” format from your computer to start the import or drag it directly to the Import workflow area. Once imported, the workflow will be created as a draft and will open automatically.



Review the imported workflow, change the content if necessary and fix any errors or alerts.

5. Delete a workflow

In the list of workflows (4), locate the flow you want to delete, hover over it and check the checkbox to select it.



If you want, you can select several workflows to delete at the same time.

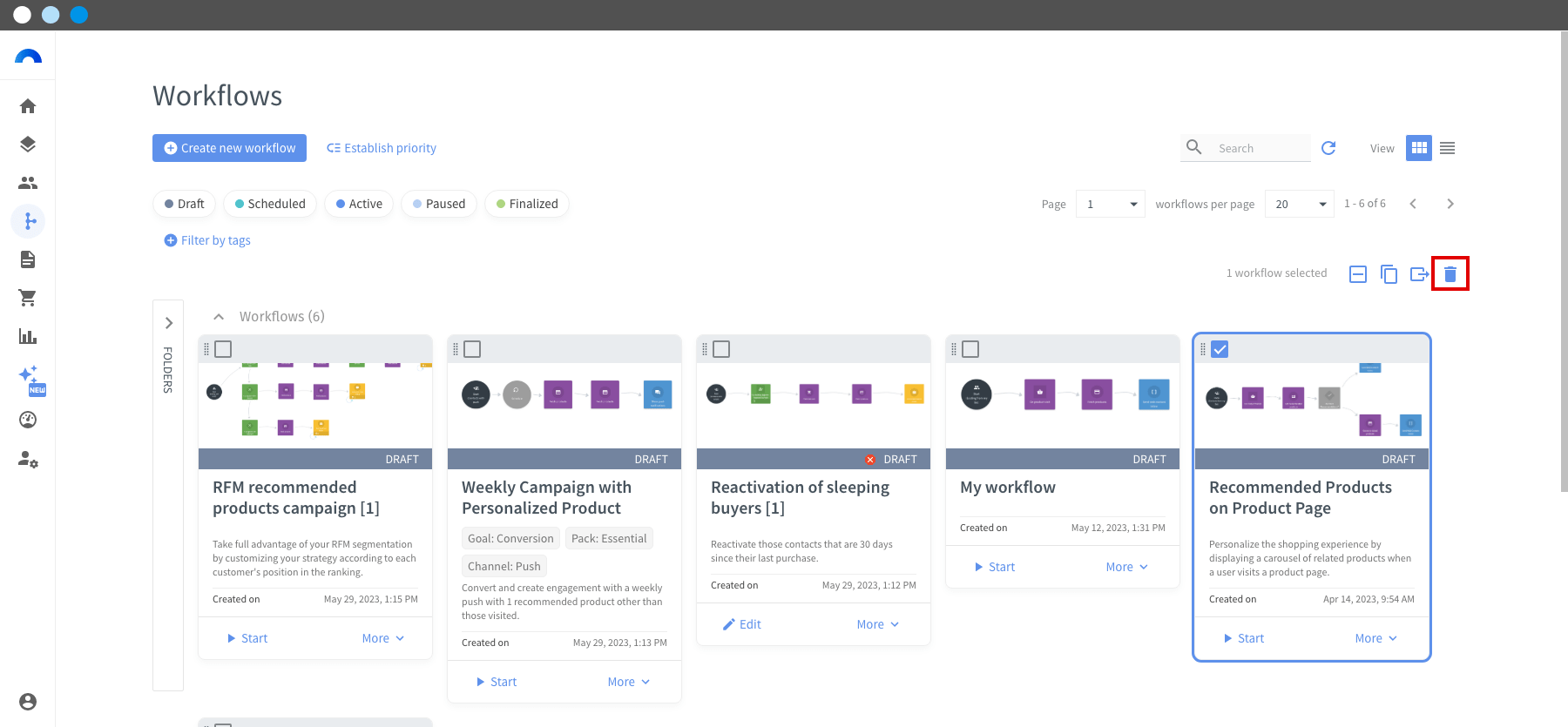

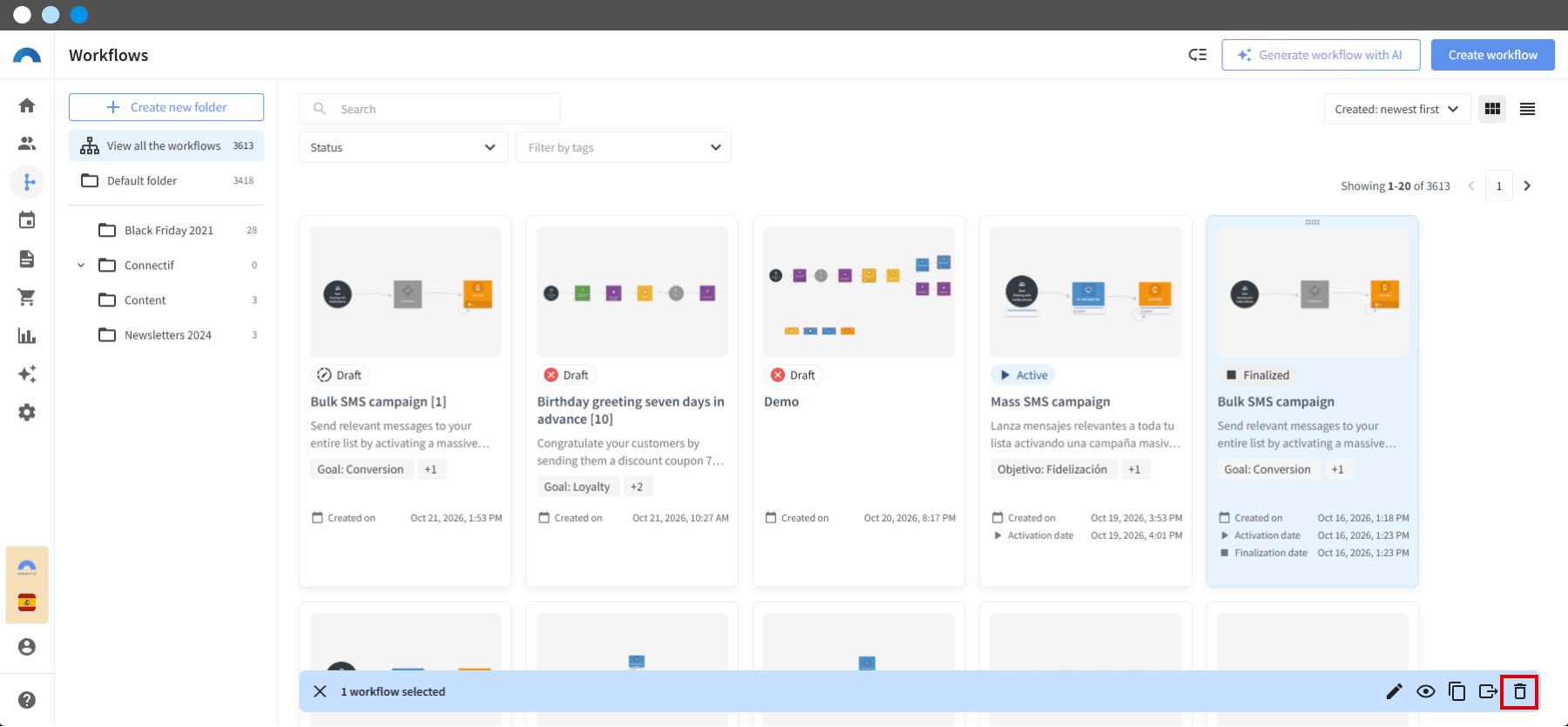

In the selection and duplication area (2) click (Delete).

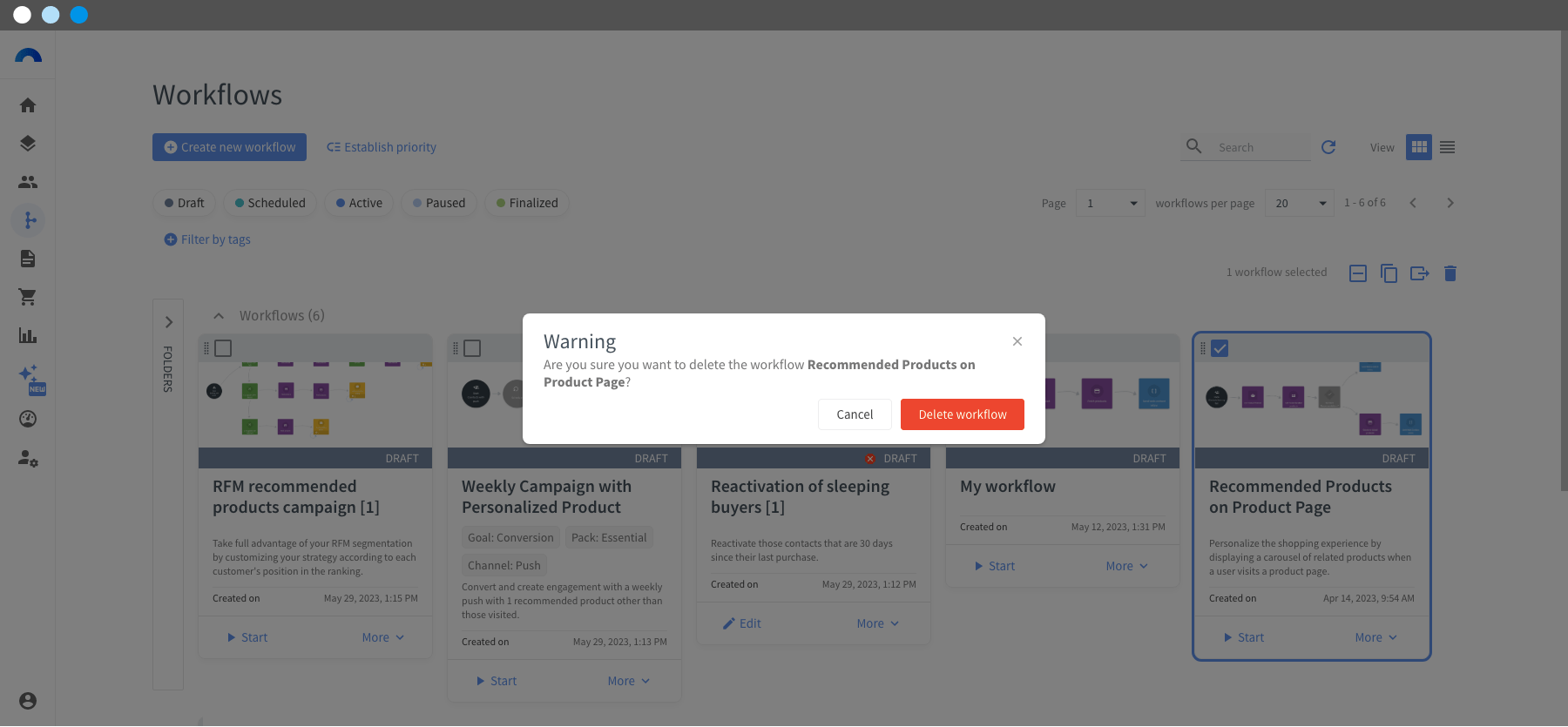

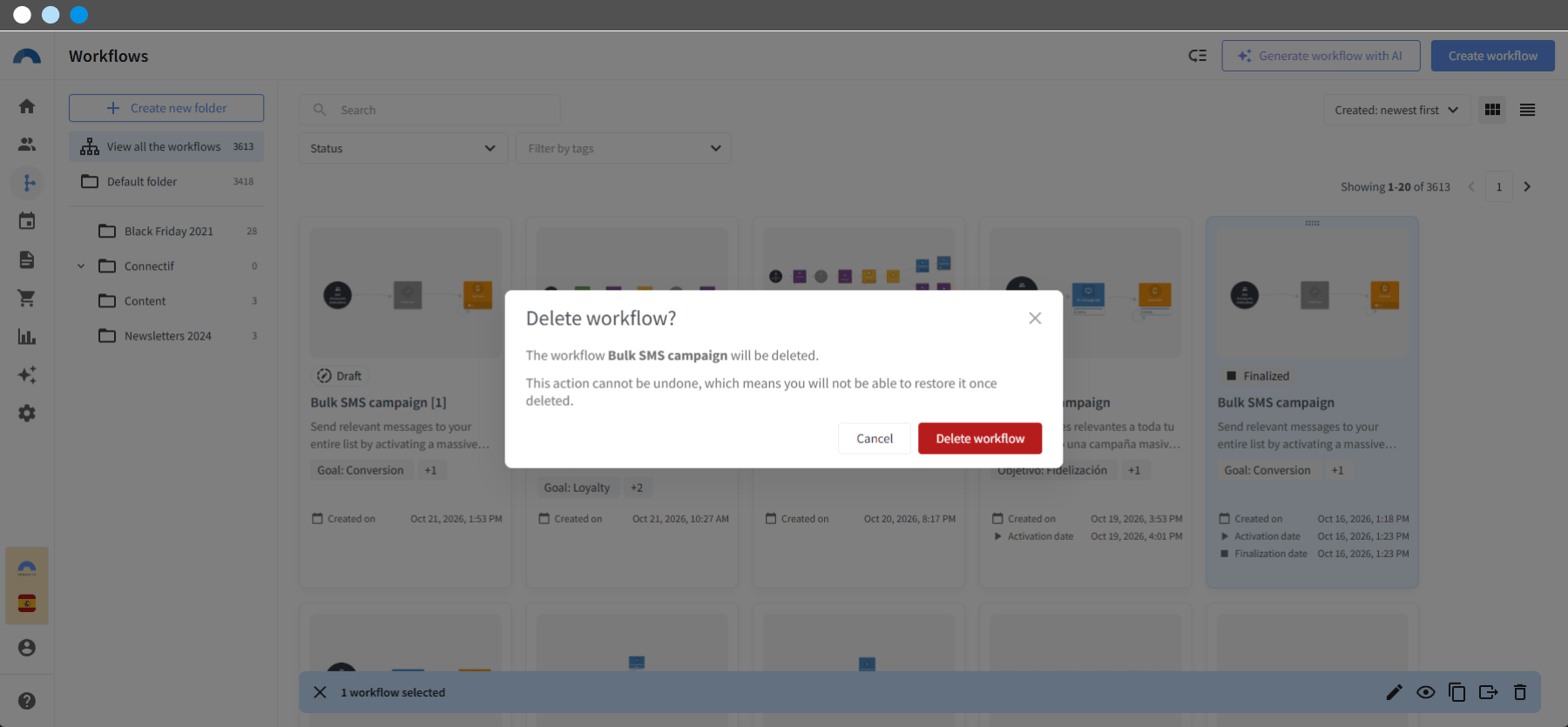

In the alert message that will be displayed, click Delete workflow to confirm the deletion of the Connectif workflow.

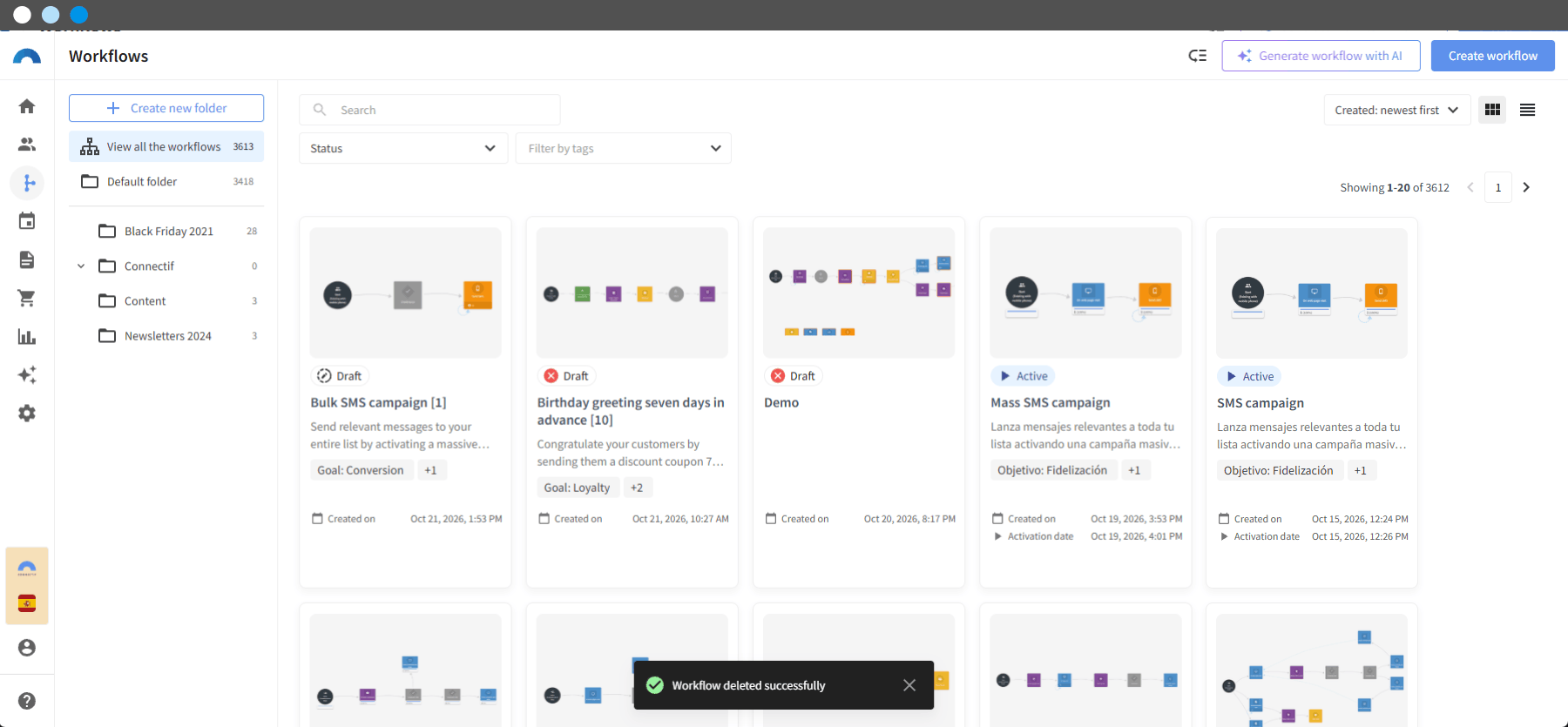

Once deleted, a success message will be displayed in the list of workflows (4).


You can also delete a workflow from the list of workflows (4) by clicking More and Delete.

6. Pause a started workflow

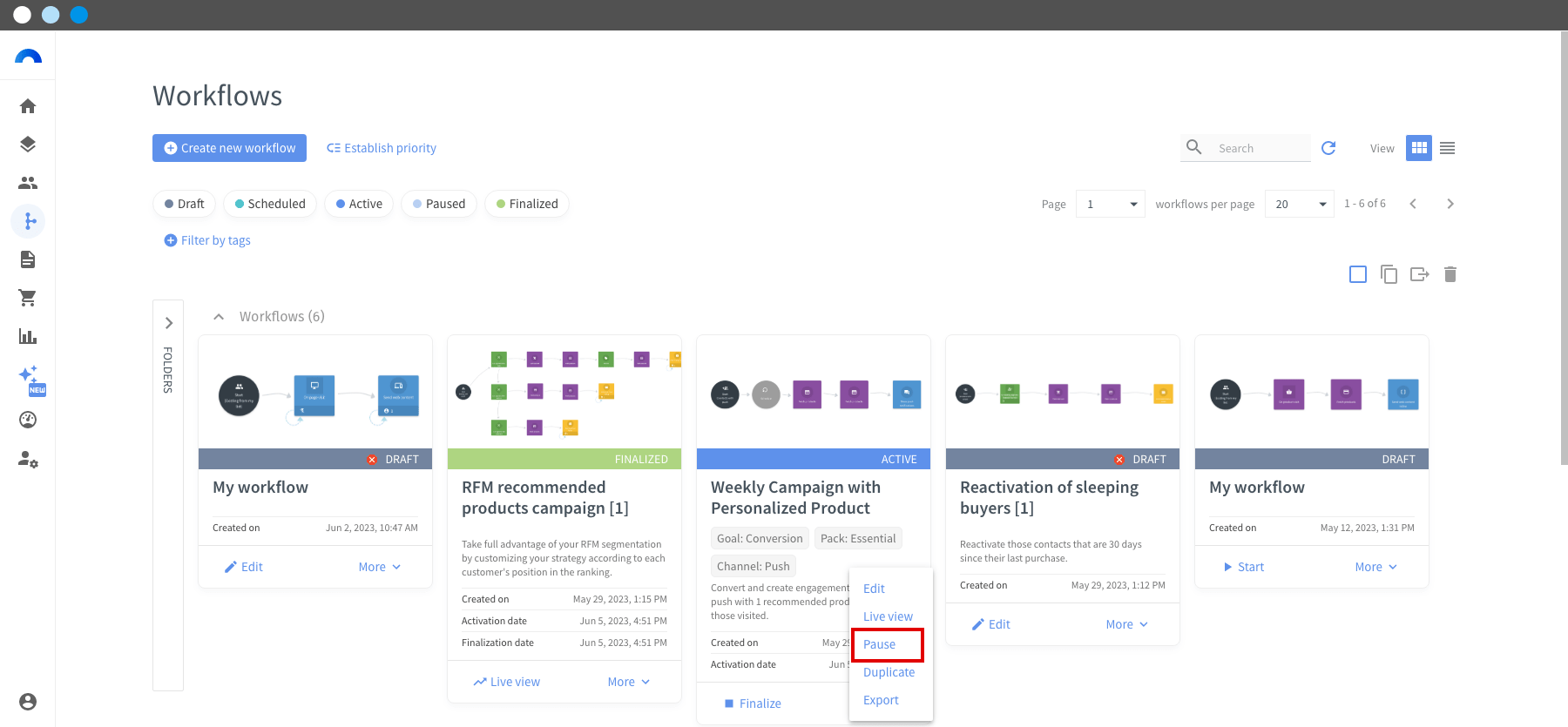

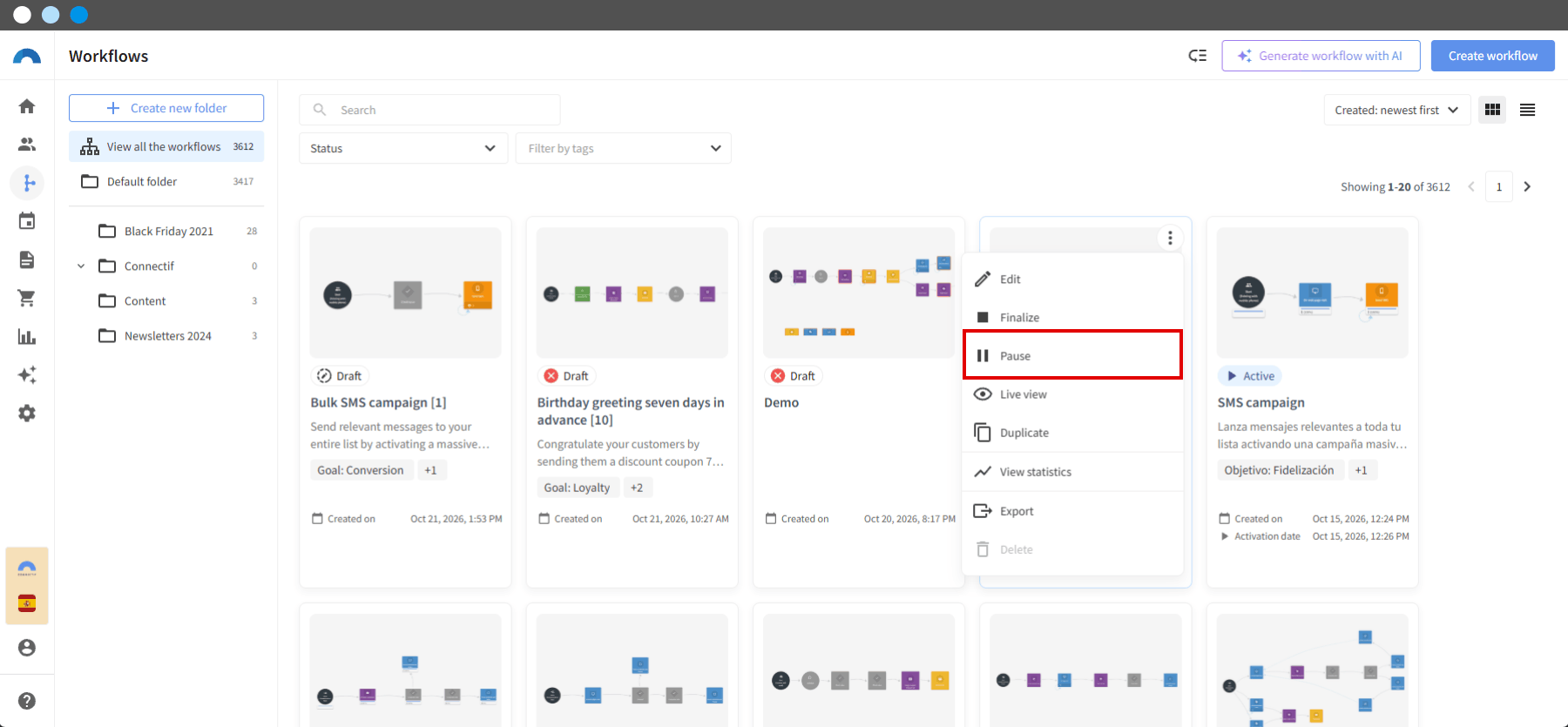

In the list of workflows (4), locate the flow you want to pause and click More and Pause.



The pause option only appears in workflows that are active. Workflows paused for more than three months will be terminated automatically.


A paused workflow can be resumed at any time.

7. End a workflow

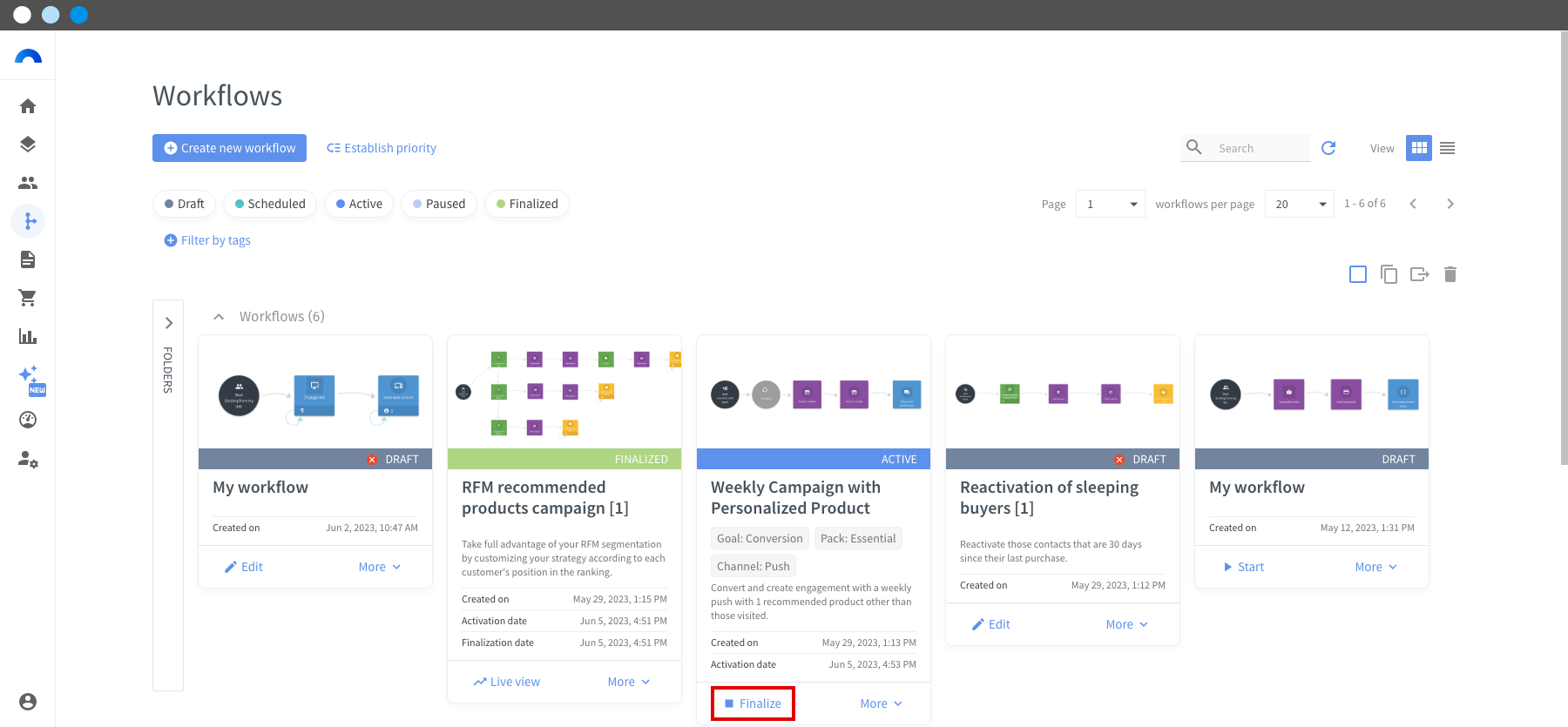

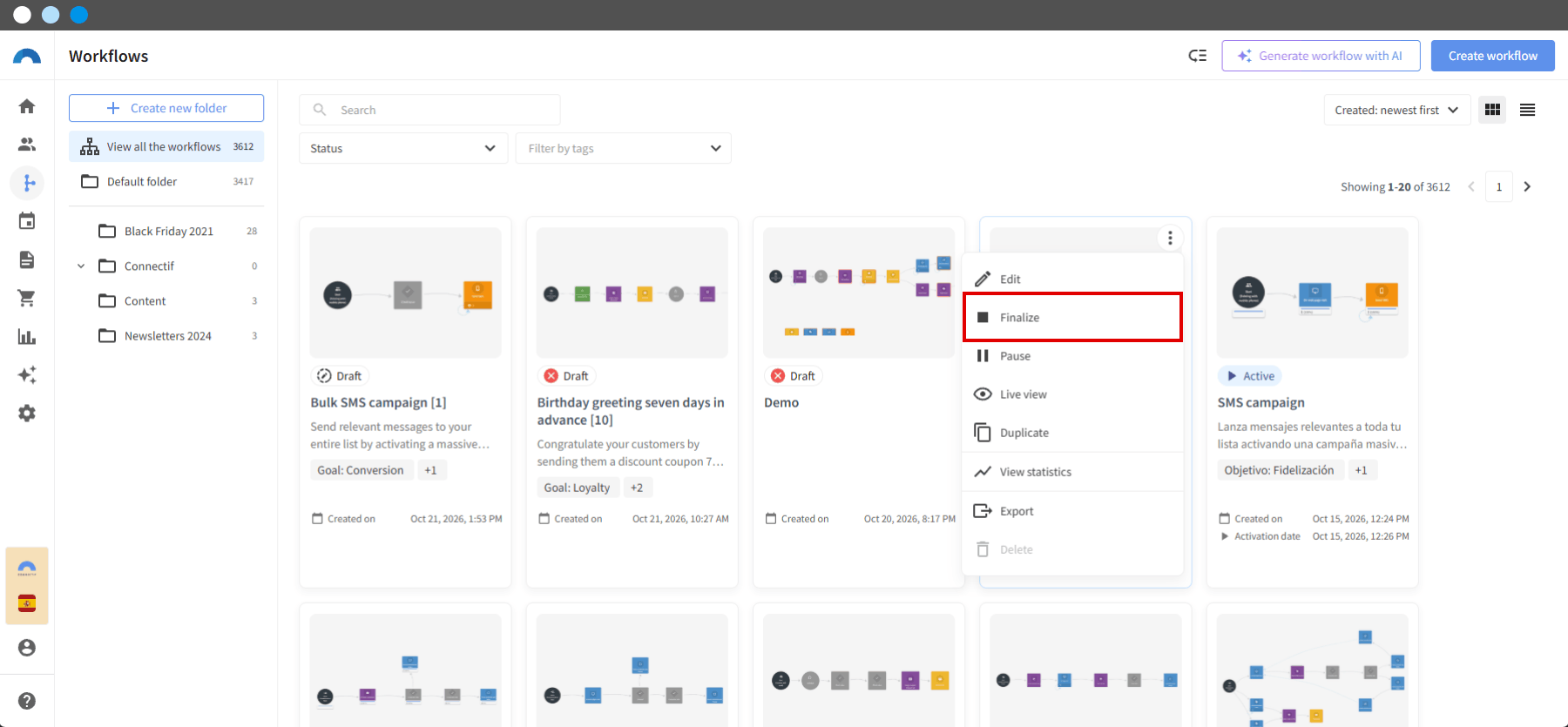

In the list of workflows (4), locate the flow you want to complete and click Finalize.



The Finalize option only appears in workflows that are active.


A finalized workflow can be duplicated but it cannot be restarted.

8. View workflow statistics



The option to view statistics only appears in workflows that are active or finalized.

8.1. View statistics for an active workflow

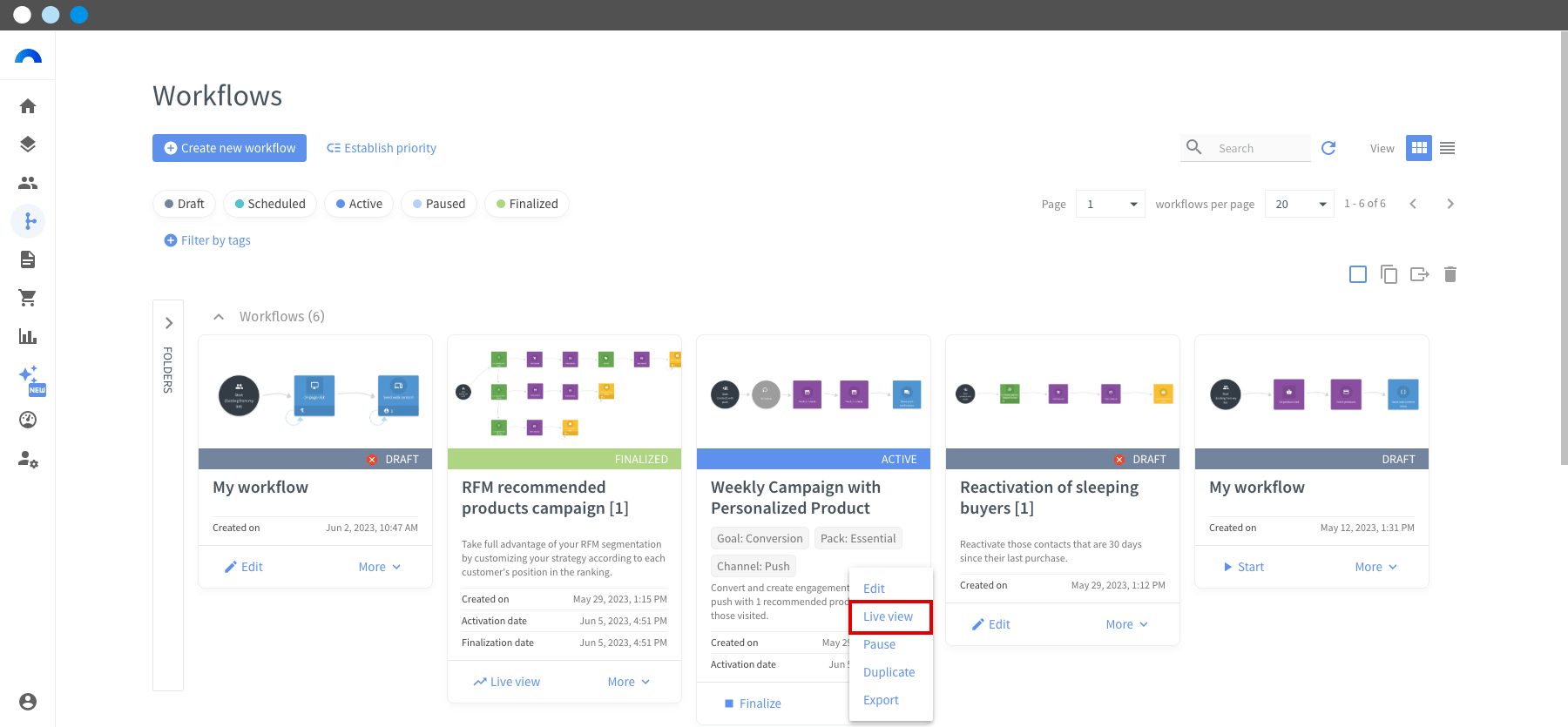

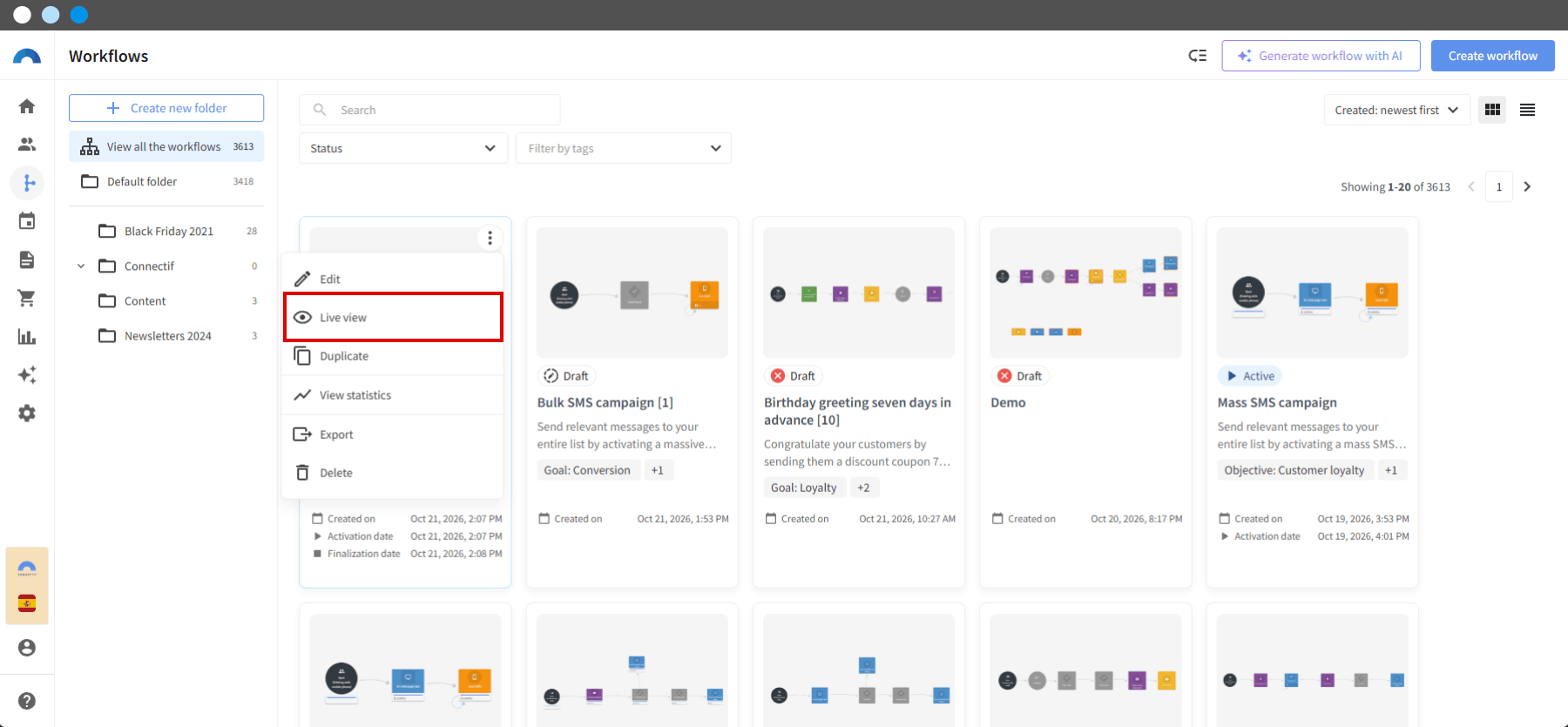

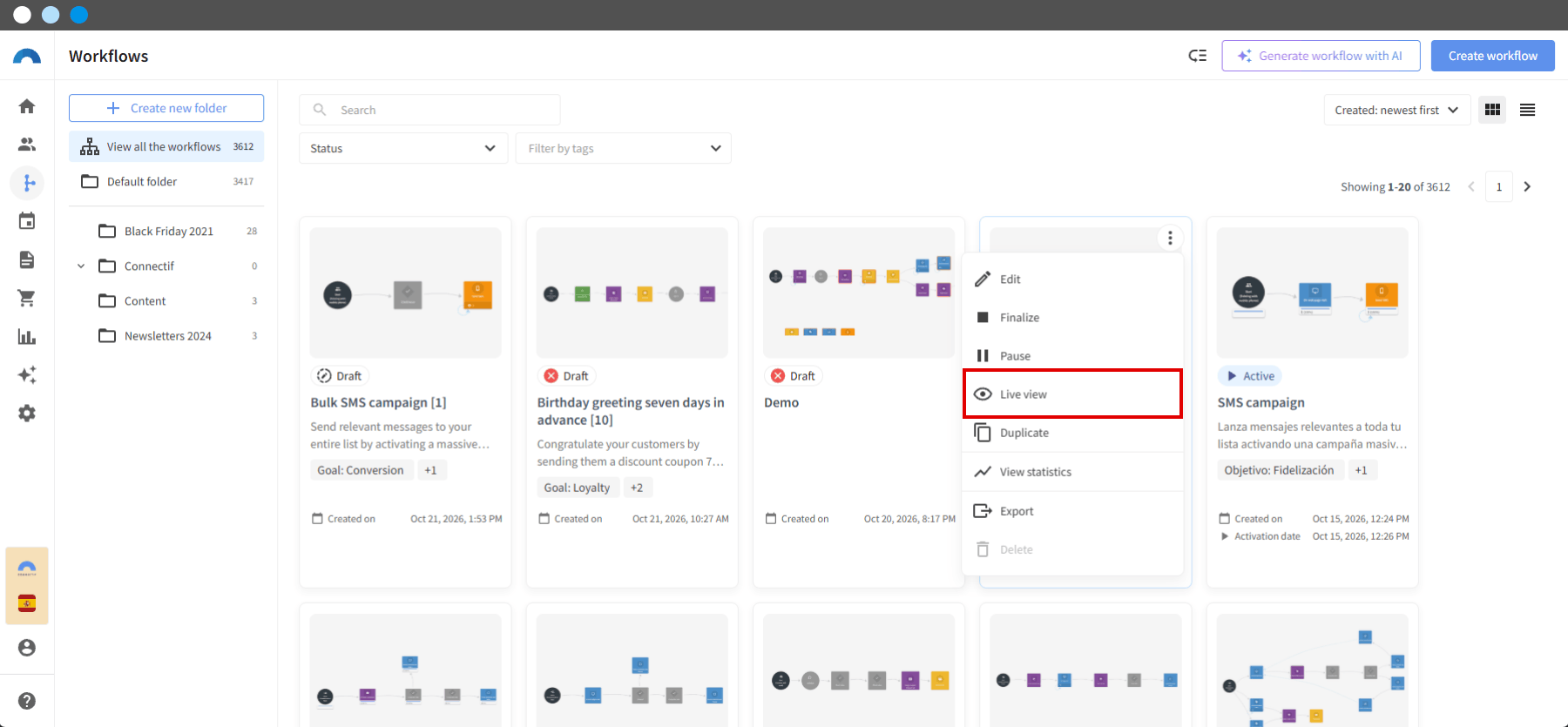

In the list of workflows (4), locate the flow you want to review and click More and Live view.




8.2. View statistics for a finalized workflow

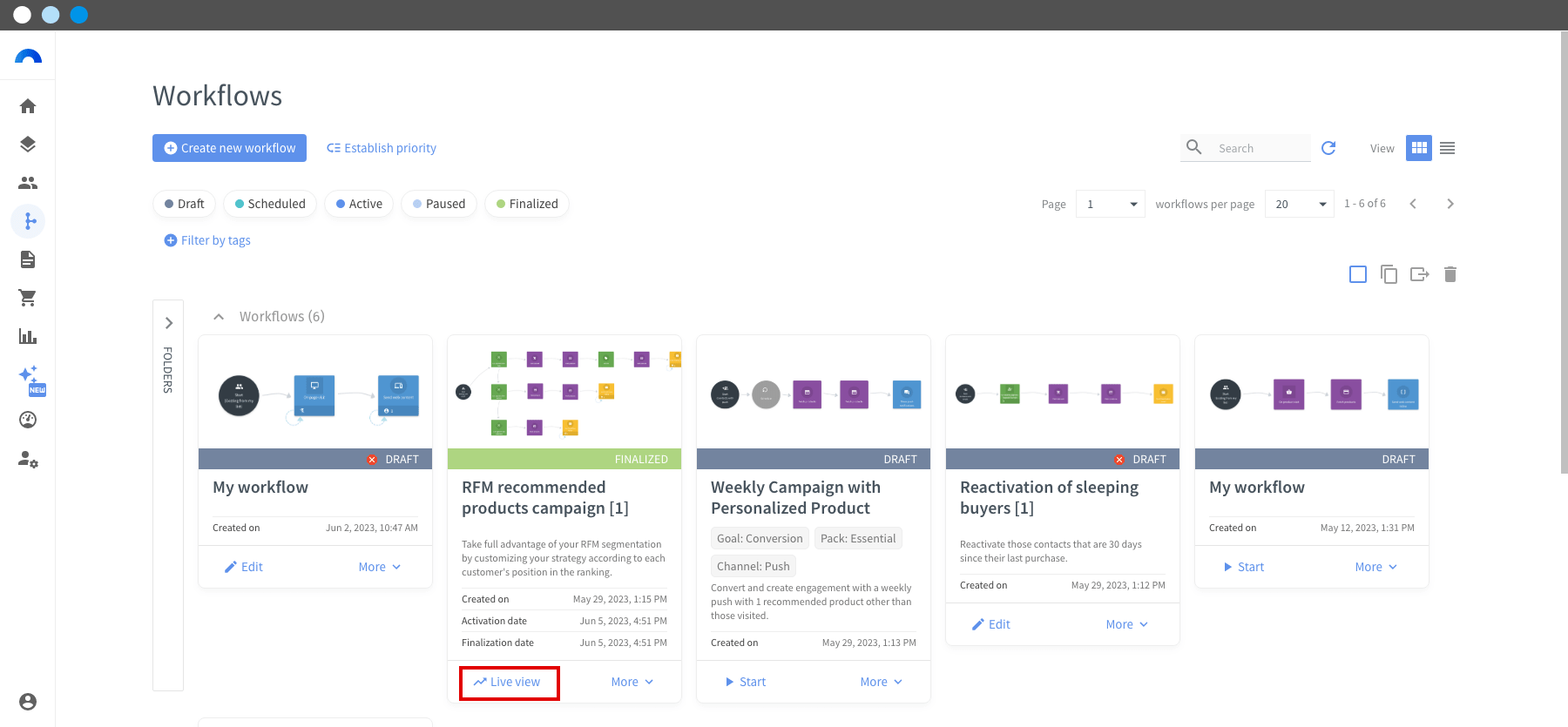

In the list of workflows (4), locate the flow you want to review and click Live view.




9. Prioritize workflows

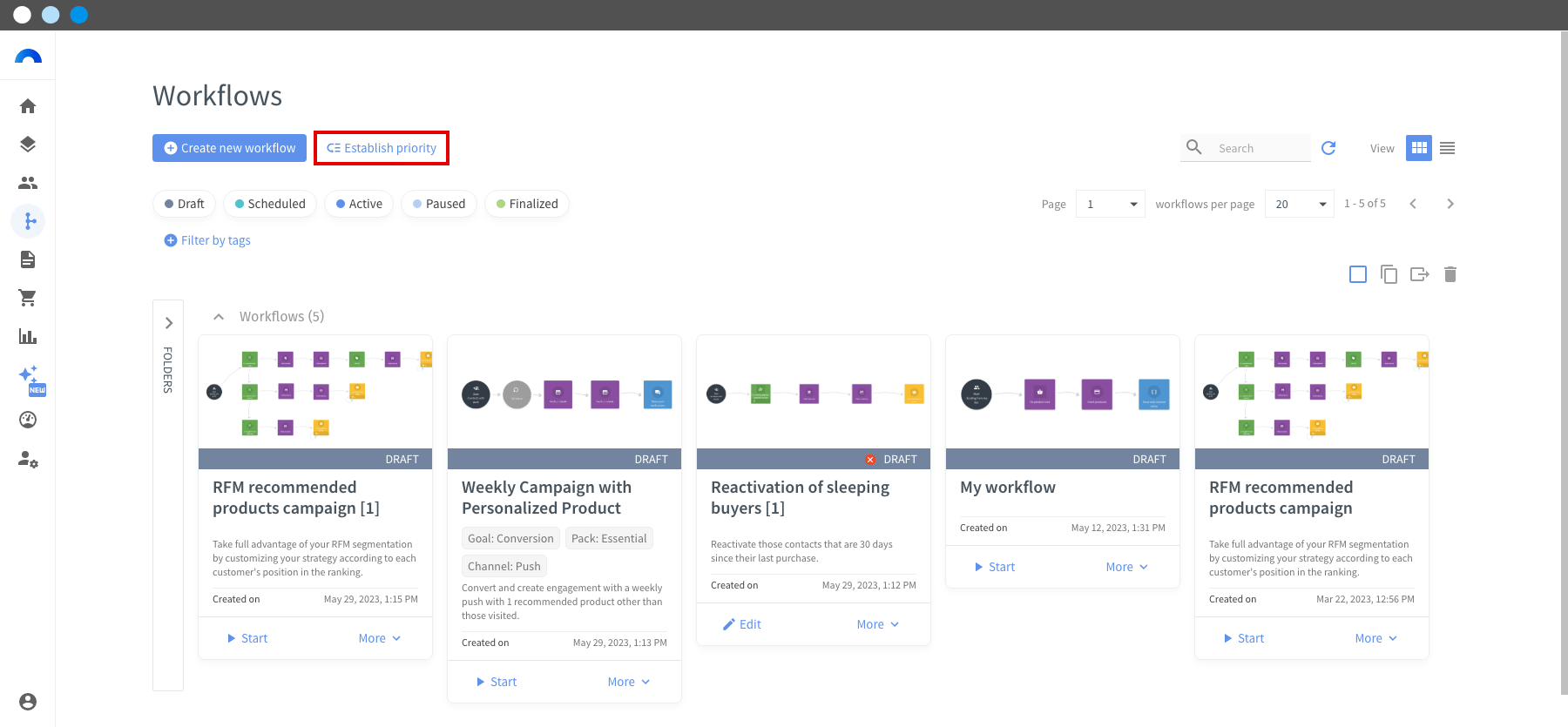

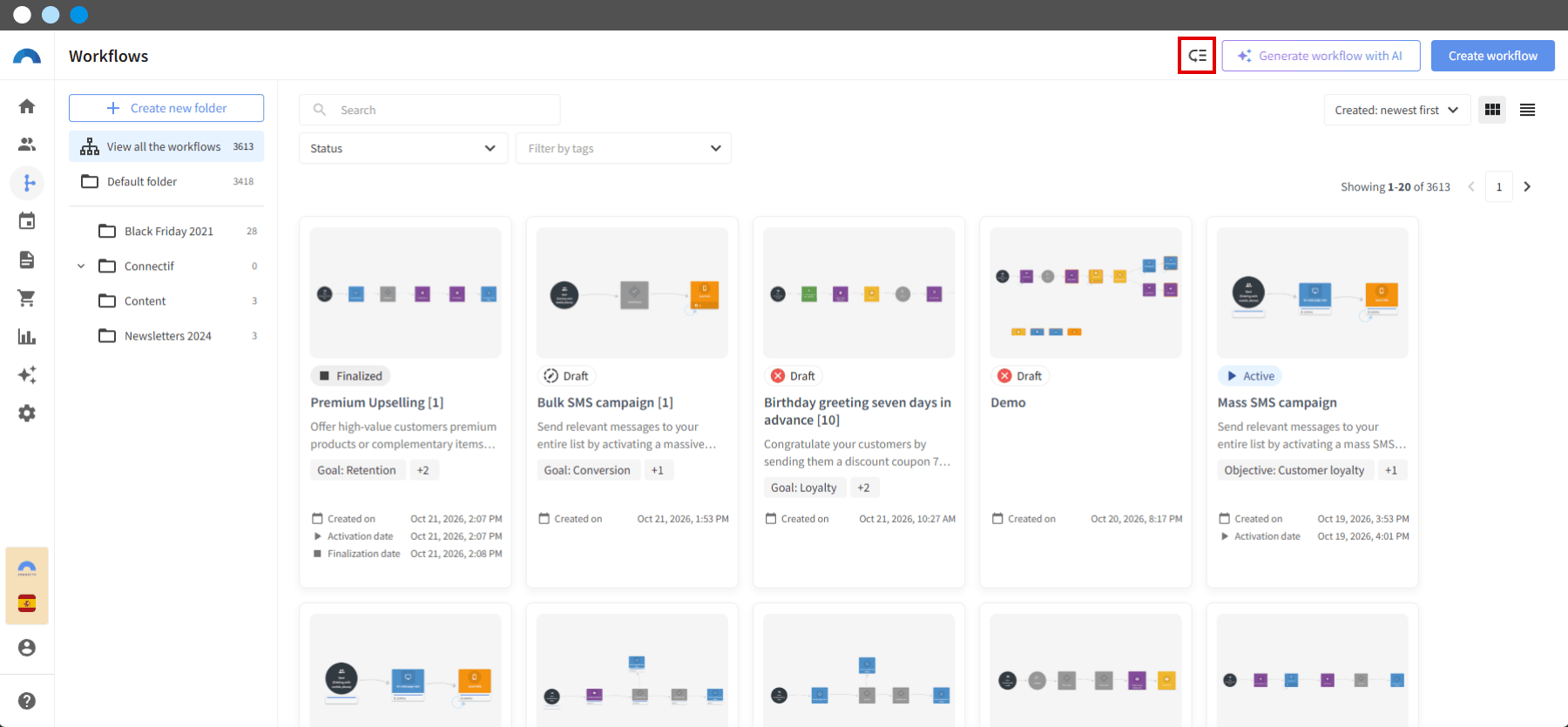

In the creation area (1) click Establish priority.


On the next screen, under Workflow priority, you can set the order in which your workflows are executed.



Learn how workflow priority works in this article.

10. Organize workflows by folders

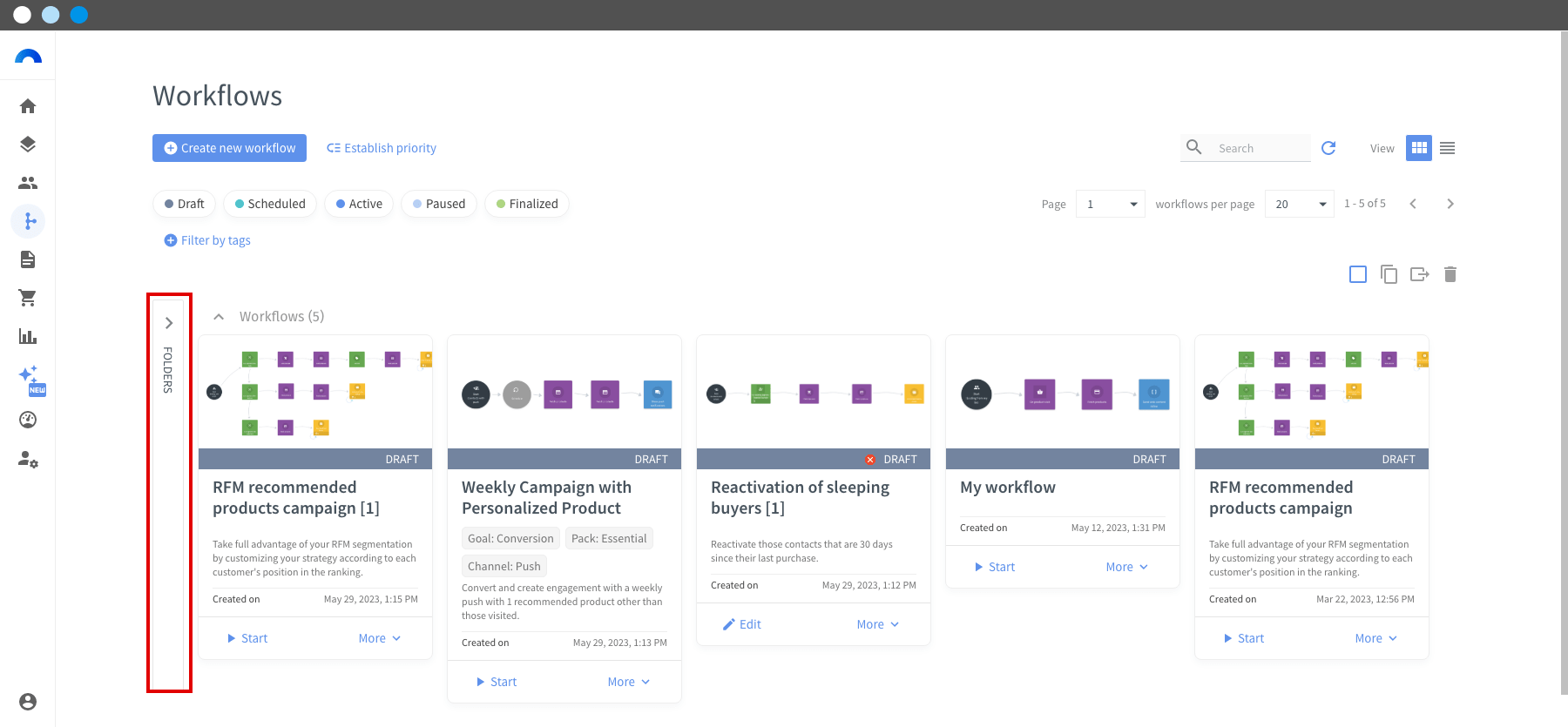

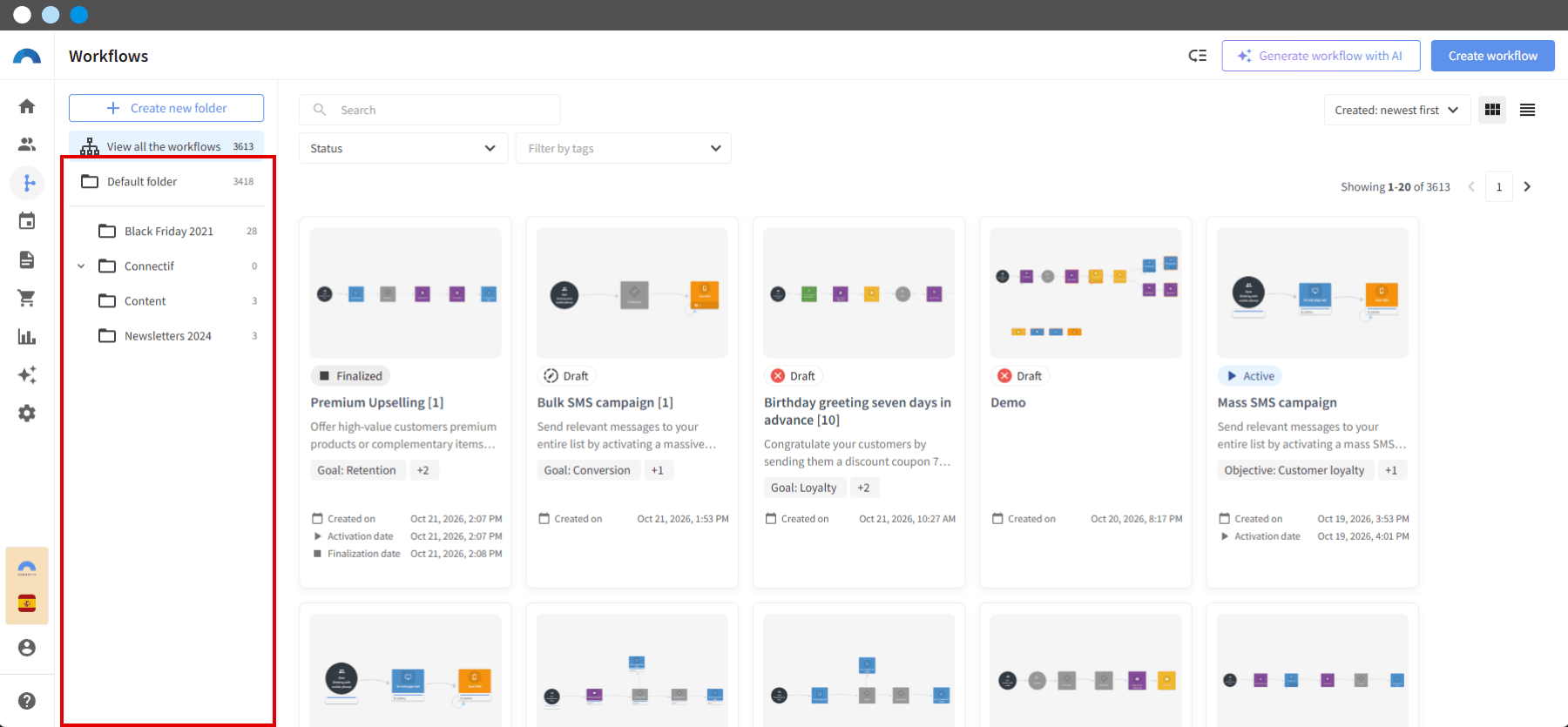

In the Workflow Folders area (3), click on Folders to display the full view of your workflow folders.


In this mode, you can expand folders that, in turn, contain other folders inside. You can easily add and delete folders and organize your workflows in just a few steps with the 'drag and drop' tool.



Learn how to organize your folders in workflows in this article.





Congratulations!
You’ve reached the end of the tutorial.
